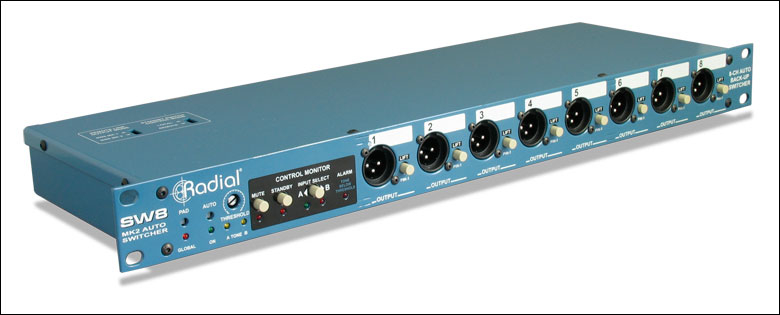

Radial Engineering SW8
Auto Switcher, Line Level, 8 Channels


Our Price: $1,199.99
List Price: $1,350.00
You save 11%!
Write the first review.
Radial Engineering SW8
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Radial SW8 is an 8 channel auto-switcher that allows you to set up a redundant backup system by automatically switching between two sources such as a pair of digital recorders, computers or network systems.


Radial Engineering SW8 Features:

  • Switch between two playback systems automatically
  • Expandable 'link' with remote control contact closure
  • Balanced or unbalanced mic and line level operation
  • Transformer isolated DI output on each channel

Radial Engineering SW8 Specifications:

  • Audio Circuit Type: Passive signal path with active relay switching
  • Input Impedance: 140k Ohms, balanced
  • Output Impedance: 150 Ohms, balanced
  • Frequency Response: 20Hz ~ 20KHz
  • Gain: -20dB
  • Dynamic Range: >120dB
  • Total Harmonic Distortion: 0.002%
  • Noise Floor: -115dBu
  • Signal to Noise Ratio: >94dB
  • Equivalent Input Noise: -95dBu
  • Maximum Input: 26dBu
  • Phase Deviation: -2┬░ @ 20Hz
  • Intermodulation Distortion: >0.002%
  • Common Mode Rejection Ratio: -112dB at 50/60Hz
