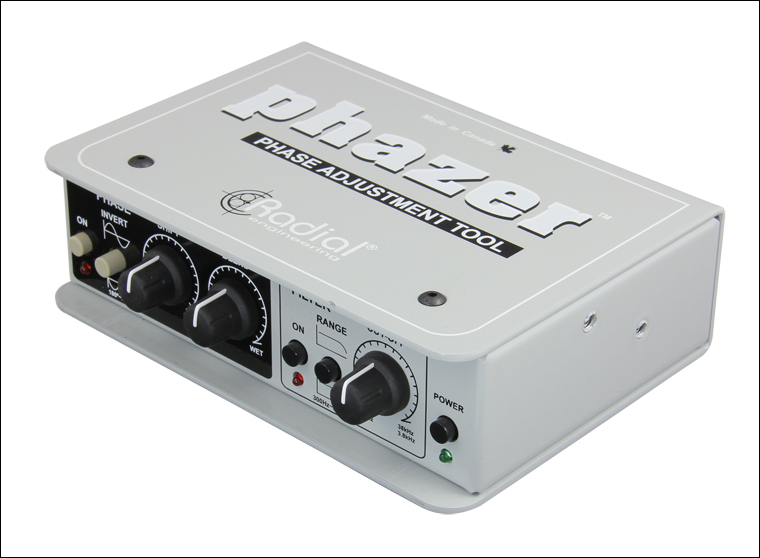

Radial Engineering PHAZER
Class-A Phase Adjuster

OUR PART #  PHAZER

Our Price: $319.99
List Price: $350.00
You save 9%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Radial Engineering Phazer™ is an analogue phase alignment tool that lets you bring two sound sources together so that the fundamentals play in sync. Once in phase, the results are impressive: On electric guitar; you can combine the direct feed of an amp with a room mic to create fat rich tones. On a kick drum, combine the 'attack' sound from a batter head mic with the 'boom' captured by the outer shell mic. On a snare drum, combine the top and bottom mics and on acoustic instruments, combine a close 'spot' mic with a room mic to capture textures like never before.

The Phazer is designed from the ground up for optimum sound quality. It employs full-size 100% discreet class-A electronics to deliver the warmth and thickness that is simply not possible with chip based devices. This results in smooth, natural sounding phase curves which are particularly noticeable in the lower frequency spectrum. 0º to 180º phase adjustment is performed with a single knob making it easy to zone-in on the sweet spot. For the more adventurous, a 180° polarity reverse switch accesses the 181° to 360° range and lets you create weird to absurd 'Phazed' tonal textures. This is augmented with a variable low-pass filter that lets you focus the effect in the lower frequency spectrum - where phasing is most audible.

Built Radial tough for the road, the Phazer is equipped with an innovative book-end design that creates a protective zone around the knobs and switches. Construction is 14-gauge steel with an internal I-beam frame that protects the sensitive electronics in even the harshest touring environments. A full bottom no-slip pad provides electrical insulation to eliminate electrical bonding and mechanical isolation to reduce mishap.

The Radial Phazer is a creative tool for the studio designed to expand your tonal palette. Live, it delivers great sound fast. Once you try one, you will never mix without!

Radial Engineering Phazer Features:

  • Time align two signals for exceptional clarity
  • 100% analogue, does not 'step' like digital delay
  • Low-pass filter lets you focus the effect
  • Once you try it, you will never mix without

Radial Engineering Phazer Specifications:

  • Audio circuit type: Active analog phase adustment
  • Number of channels: Mono
  • Frequency response: 20Hz ~ 20KHz (± 0.5dB)
  • Signal to noise: 77dB
  • Dynamic range: 94dB
  • Maximum input: +11.5dBu @ 1kHz, 1% THD+N
  • Total harmonic distortion: 0.005% @ 1kHz, -10dBuoutput
  • Input impedance: 10k Ohms, balanced
  • Output impedance: 2k Ohms, balanced
  • Construction: 14 gauge steel chassis & outershell
  • Finish: Durable powder coat
  • Size (W x H x D): 4.5" x 2" x 6" (114 x 57 x 147mm)
  • Weight: 2.8 lb (1.3kg)
  • Shipping size: L x W x D: 4.75" x 2.5" x 10.75" (121x 64 x 273mm)
  • Shipping weight: 3.05 lb ( 1.4kg)
  • Power: +15V DC/400mA power supply included
  • Conditions: For use in dry locations only between 5°Cand 40°C
  • Warranty: Radial 3-year, transferable

Radial Engineering PHAZER
Class-A Phase Adjuster

OUR PART #  PHAZER

Product Information:

The Radial Engineering Phazer™ is an analogue phase alignment tool that lets you bring two sound sources together so that the fundamentals play in sync. Once in phase, the results are impressive: On electric guitar; you can combine the direct feed of an amp with a room mic to create fat rich tones. On a kick drum, combine the 'attack' sound from a batter head mic with the 'boom' captured by the outer shell mic. On a snare drum, combine the top and bottom mics and on acoustic instruments, combine a close 'spot' mic with a room mic to capture textures like never before.

The Phazer is designed from the ground up for optimum sound quality. It employs full-size 100% discreet class-A electronics to deliver the warmth and thickness that is simply not possible with chip based devices. This results in smooth, natural sounding phase curves which are particularly noticeable in the lower frequency spectrum. 0º to 180º phase adjustment is performed with a single knob making it easy to zone-in on the sweet spot. For the more adventurous, a 180° polarity reverse switch accesses the 181° to 360° range and lets you create weird to absurd 'Phazed' tonal textures. This is augmented with a variable low-pass filter that lets you focus the effect in the lower frequency spectrum - where phasing is most audible.

Built Radial tough for the road, the Phazer is equipped with an innovative book-end design that creates a protective zone around the knobs and switches. Construction is 14-gauge steel with an internal I-beam frame that protects the sensitive electronics in even the harshest touring environments. A full bottom no-slip pad provides electrical insulation to eliminate electrical bonding and mechanical isolation to reduce mishap.

The Radial Phazer is a creative tool for the studio designed to expand your tonal palette. Live, it delivers great sound fast. Once you try one, you will never mix without!

Radial Engineering Phazer Features:

  • Time align two signals for exceptional clarity
  • 100% analogue, does not 'step' like digital delay
  • Low-pass filter lets you focus the effect
  • Once you try it, you will never mix without

Radial Engineering Phazer Specifications:

  • Audio circuit type: Active analog phase adustment
  • Number of channels: Mono
  • Frequency response: 20Hz ~ 20KHz (± 0.5dB)
  • Signal to noise: 77dB
  • Dynamic range: 94dB
  • Maximum input: +11.5dBu @ 1kHz, 1% THD+N
  • Total harmonic distortion: 0.005% @ 1kHz, -10dBuoutput
  • Input impedance: 10k Ohms, balanced
  • Output impedance: 2k Ohms, balanced
  • Construction: 14 gauge steel chassis & outershell
  • Finish: Durable powder coat
  • Size (W x H x D): 4.5" x 2" x 6" (114 x 57 x 147mm)
  • Weight: 2.8 lb (1.3kg)
  • Shipping size: L x W x D: 4.75" x 2.5" x 10.75" (121x 64 x 273mm)
  • Shipping weight: 3.05 lb ( 1.4kg)
  • Power: +15V DC/400mA power supply included
  • Conditions: For use in dry locations only between 5°Cand 40°C
  • Warranty: Radial 3-year, transferable
