OUR PART # VRX928LA

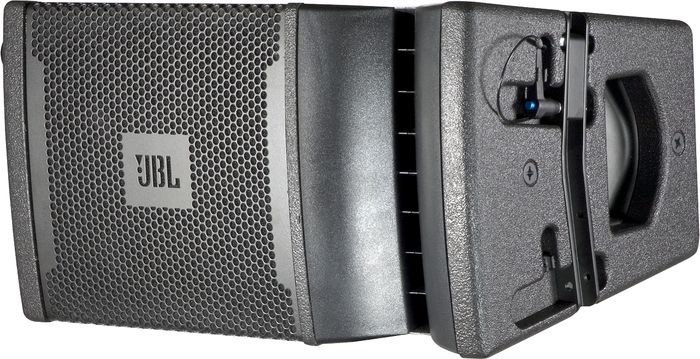

The JBL VRX928LA is a lightweight (28 lb / 13 kg) compact 8" two-way line-array speaker system designed for use in arrays of up to six units. VRX928LA is the ideal choice when line-array performance is needed but the venue size doesn’t call for the very long-throw characteristics of larger line-arrays such as JBL’s VERTEC or VRX932LA.
The Constant Curvature waveguide mounts two compression drivers on a continuous arc. When additional VRX928LA speakers are added to the array the uninterrupted arc continues. In effect, all the drivers work together as if they were a single driver on a very long waveguide. Since there are two HF drivers in each VRX928LA, the combined power handling and acoustic output of the system is far greater than a single driver could achieve.
VRX928LA uses “amplitude shading” to shape the coverage of the array. Switches on the input plate allow, for example, the upper box in an array to reach the distant rear of a room while the lower box is shaded back to reduce excessive level at the front of the listening area.
One or two VRX928LAs may also be used on a tripod or over the VRX915S subwoofer. The integral rigging hardware is used to securely lock the array together.
As many as six VRX928LA speaker systems may be suspended in a single array for a nominal vertical coverage of up to 90°. Suspended applications require the JBL VRX928LA-SMAF array frame (available separately). For applications in which the array must be aimed sharply down, a second Array Frame may be installed to the bottom of the array serving as a pull-back.
JBL VRX928LA Features:
JBL VRX928LA Specifications:
Tripod Stand for the EON/MR/SR/TR
Tripod speaker stand for the JBL MPro, Eon and Soundfactor Series speakers.
36mm Diameter 41" Speaker Pole for the SR4718X
The SS3BK is a 36mm diameter, 41" speaker pole for JRX, MRX and PRX sub/satellite configurations. The SS3BK is a speaker-mounting pole intended for use with the JBL Professional SR4718X subwoofer. The SS3BK uses the SR4718X as a base for ...
Usually ships in 7-14 business days.
Need it sooner? Call us!
Subwoofer, Bass Reflex, Arrayable, 15", Black, 800W
The JBL VRX915S is a compact, high power suspendable subwoofer system containing a 2265G-1 neodymium magnet, patented Differential Drive®, 15" woofer in a front-loaded, vented enclosure. The VRX915S was designed specifically for use in ...
Small Array Frame for JBL VRX928LA/VRX915S
Small array frame for suspending VRX928LA/VRX915S arrays weighing up to 300 lbs. Includes 2 x quick release pins, 2 x shackles, 2 x drop levers.
