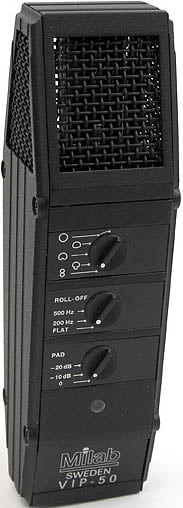

Milab VIP-50
Transformerless Multi-Pattern Condenser Microphone

OUR PART #:  VIP50

Features: Transformerless variable pattern (cardioid, wide cardioid, hypercardioid,figure 8...
Learn More
Our Price: $2,249.00
List Price: $2,499.00
You save 10%!
Write the first review.
Milab VIP-50
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

Features:

  • Transformerless variable pattern (cardioid, wide cardioid, hypercardioid,figure 8, omni) condenser microphone
  • 200/500 Hz high pass filters
  • -10/-20 dB pre-attenuation
  • Rectangular large dual membrane capsule
  • Shock absorbing rubber fitted capsule
  • 48 V phantom powered

Specifications:

  • Frequency response: 20Hz - 20kHz
  • Polar patterns (switchable): Cardioid, Wide Cardioid, Hyper Cardioid,Figure 8, Omni
  • Filters (switchable): 200 Hz high pass/500 Hz high pass
  • Pre-attenuation (switchable): -10 dB/-20 dB
  • Max. SPL (1 % THD at 1 kHz): 112 dB
    with 10 dB pad: 122 dB
    with 20dB pad: 132 dB
  • Sensitivity at 1kHz: 14 mV / Pa ┬▒ 1 dB
  • A-weighted noise level (IEC 179-A): <19 dB
  • Power supply: 48 V ┬▒ 4 V phantom
  • Current consumption: 3.5 mA
  • Output impedance: < 200 Ohms
  • Minimum load impedance: 1 kOhm
  • Connection: 3-pin XLR
    pin 1: earth (Shield)
    pin 2: plus(Hot)
    pin3: minus (Cold)
  • Net weight: 400 g
  • Length: 170 mm
  • Wigth: 47 mm
  • Thickness (max.): 50 mm
