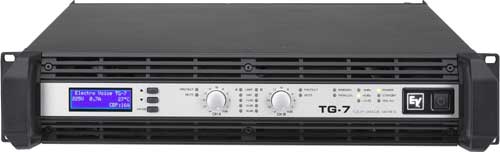

Electro-Voice TG7
Power Amplifier, Touring Grade, Class H, 2 x 2500W @ 4 ohms continuous

OUR PART #:  TG7

Call for price! Not available online.
List Price: $5,589.00

Similar Products

Electro-Voice's Tour Grade amplifiers have a microprocessor controlled operation management system that provides useful features such as compound thermal management (preventing amps from switching off in excessive thermal environment), automatic mains voltage detection and a circuit breaker control that allows the TG-7 to operate on a 30A (120V) or 16A (230V) circuit breaker with normal music signal.

Tour Grade amplifiers use a grounded bridge 3-step class-H topology to ensure the highest acoustic performance and reliability. The TG Series also offers the power and transient response to drive subwoofers along with the low distortion for critical HF signals. The high capacity switchmode power supply provides the headroom needed to ensure high dynamic outputs and reliable operation on extreme low loads.

Electro-Voice TG7 Specifications:

  • Continuous rated power (1k Hz, THD 1%) 2 ohms: 3500 Watts
  • Continuous rated power (1k Hz, THD 1%) 4 ohms: 2500 Watts
  • Continuous rated power (1k Hz, THD 1%) 8 ohms: 1500 Watts
  • Continuous rated power (20-20k Hz, THD<0,2%) 4ohms: 2100 Watts
  • Continuous rated power (20-20k Hz, THD<0,2%) 8ohms: 1050 Watts
  • Maximum bridged output 4 ohms: 7000 Watts
  • Maximum bridged output 8 ohms: 5000 Watts
  • Slew Rate: <35V/┬Ás
  • Amplifier Gain (dB): 39dB, 35dB, 32dB (switchable)
  • Control Protocol: CAN-Bus (with RCM 26 module)
  • Network Control (IRIS-Net): Optional
  • Total harmonic distortion: < 0.05 %
  • Intermodulation Distortion (SMTPE): < 0.05 %
  • DIM 30: < 0.02 %
  • Signal-to-noise ratio (A-weighted): < 111 dB
  • Input Impedance (balanced): 20 kohms
  • Input Sensitivity: 0dBu/6dBu/9dBu (switchable)
  • Weight Net: 31.97 lbs
  • Dimensions (H x W x D): 3.47" x 19.02" x 20.16"
