Electro-Voice REV-Single
Single-Channel UHF Receiver

OUR PART #:  REV-S

Electro-Voice's REV-S is a REV Single UHF Receiver.
Learn More
Selected Model Sale Price: $268.84
List Price: $1,970.00
Save up to 86%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Electro-Voice REV-Single
Select model: (shipping times are approximate)
Qty:
Similar Products

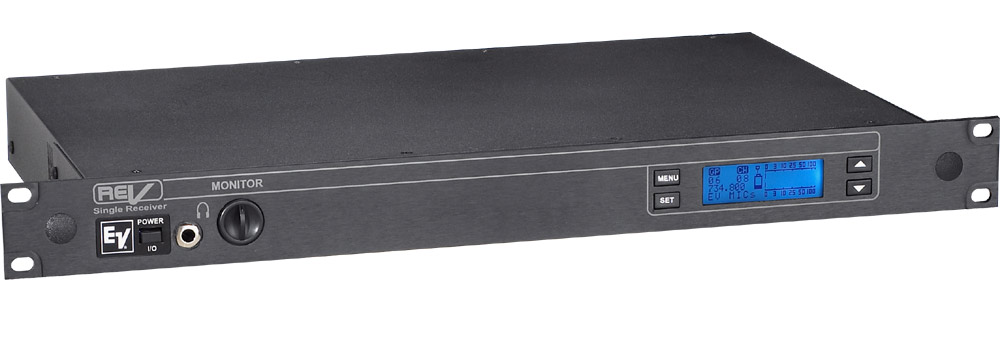

Electro-Voice's REV-S is a REV Single UHF Receiver.

The REV-Single is a full rack width chassis with a universal power supply, headphone monitoring, CAN Bus connections, and full front panel controls. For those applications where just one channel is required or larger installations that call for an odd number of receivers.

Specifications:

  • Controls On/Off, Menu, Set, Up, Down, headset volume
  • Displays Backlit LCD, Group, Channel, Frequency, Label, RF, AF, Menus
  • RF Specifications 24MHz Bandwidth
  • Connector Type 1/4" unbalanced
  • Connector Type 3-pin XLR
  • Powerered Antenna Inputs 12V DC Selectable
  • Audio Frequency Response 100 - 15kHz +/-2dB Voice 30 - 15kHz Instrument
  • Balanced Line Level Output (RMS Adjustable) 10 - 100 mV
  • Distortion (@ 1kHz, 40 kHz deviation) < 0.5 %
  • Diversity Digital Posi-Phase™ True Diversity
  • Dynamic Range > 100 dB
  • FCC Type Acceptance Approved under Part 15
  • Number of channels 950 possible (programmable in 25kHz steps) per band
  • Power Supply Universal Cord, 90 - 240 VAC, 50-60 Hz
  • Receiver Type Synthesized PLL Agile UHF
  • RF Sensitivity (12 dB SINAD) < 0.8 uV
  • Specials CAN Bus connection for REV-Link Software
  • Squelch Tone Code plus Adjustable Amplitude
  • Case: Material Steel
  • Dimensions: 1.72" H x 16" W x 12.01" D (43.7 x 406.4 x 305 mm)
