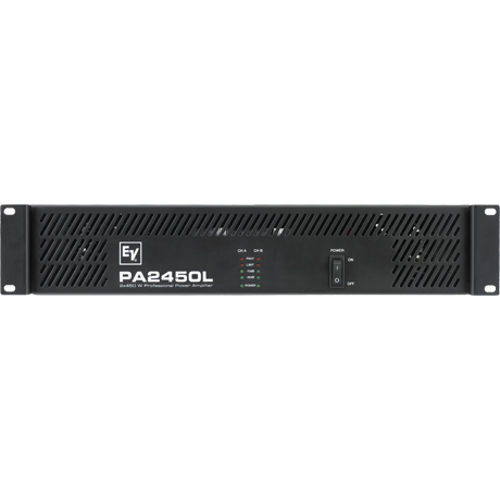

Electro-Voice PA2450L
2-Channel Power Amp, 2 x 450 Watts @ 4 ohms, 70/100V, 2RU

OUR PART #:  PA2450L

The Electro-Voice® PA2450L is from the PA series of professional commercial audio amplifiers.
Learn More
Our Price: $690.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Electro-Voice PA2450L
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Electro-Voice® PA2450L is from the PA series of professional commercial audio amplifiers. The direct path airflow design reduces the heat buildup significantly and allows for more amplifier channels and output power in slim two rack space chassis. The audio performance of the PA2450L is superior and fulfills the requirements in many demanding long term applications from sound reinforcement, paging or life safety installations.

The PA2450L features many of the same comprehensive protection circuits typical in EV amplifiers. Complete protection is provided for high temperature, audio limiters, power up delay and peak current limiters. In addition to the rated output power, the PA2450L provides excellent headroom for a wide dynamic range on music signals. The onboard dynamic limiter ensures that the output clipping of the PA2450L will not will not generate excessive distortion. The amplifier channels can be bridged for more power flexibility.

Marked level controls on the rear panel provide hidden reliable level adjustments for each channel. Front panel LEDs indicate signal present, 0 dB, and limit. Phoenix type connectors for inputs and outputs provide an easy rack wiring.

Electro-Voice PA2450L Features:

  • Balanced phoenix style input connectors – makes installation easy.
  • A phoenix style connector block for all output modes.
  • Models available from 160 to 450 watts per channel into 4 ohms or 70/100V.
  • Bridge mode operation on all multi channel models provide powerflexibility.
  • Switch selectable hi-pass filter at either 50Hz or 300Hz meets any installation requirement.
  • Independent rear panel level controls provided for each channel
  • All models provide multi-voltage operation from 110-240vac.
  • Integrated “rack ears” allow for rack mounting without additional accessories.

Electro-Voice PA2450L Specifications:

  • Continuous rated power (1k Hz, THD 1%) 4 ohm: 450 Watts
  • Continuous rated power (1k Hz, THD 1%) 8 ohm: 220 Watts
  • Continuous rated power (20-20k Hz, THD<0,2%) 4 ohm: 400 Watts
  • Continuous rated power (20-20k Hz, THD<0,2%) 8 ohm: 200 Watts
  • Slew Rate: > 28 V / µs
  • Amplifier Gain (dB): 34.3dB
  • Network Control (IRIS-Net): No
  • Total harmonic distortion: < 0.1 %
  • Intermodulation Distortion (SMTPE): < 0.1 %
  • DIM 30: < 0.1 %
  • Input Sensitivity: 0 dBu
  • Weight: 36.38 lbs. (16.5 kg)
  • Dimensions (HxWxD): 3.46" x 19.02" x 15.98" (88 x 483 x 406 mm)

Click to download
