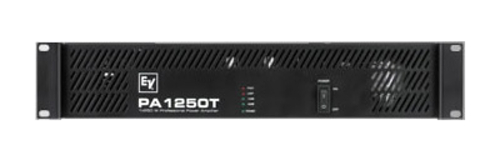

Electro-Voice PA1250T
1-Channel Power Amp, 1 x 270W @ 4 Ohms, 70/100V, 2RU

OUR PART #:  PA1250T

The Electro-Voice® PA1250T is from the PA series of professional commercial audio amplifiers.
Learn More
Our Price: $608.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Electro-Voice PA1250T
Qty:
In Stock

Similar Products

The Electro-Voice® PA1250T is from the PA series of professional commercial audio amplifiers. The direct path airflow design reduces the heat buildup significantly and allows for more reliable operation in slim two rack space chassis. The audio performance of the PA1250T is superior and fulfills the requirements in many demanding long term applications from sound reinforcement, paging or life safety installations.

High performance torroidal power and output transformers combine clean saturation free audio performance with cool running operation. The PA1250T features many of the same comprehensive protection circuits typical in EV amplifiers. Complete protection is provided for high temperature, audio limiters, power up delay and peak current limiters. In addition to the rated output power, the PA1250T provides excellent headroom for a wide dynamic range on music signals. The onboard dynamic limiter ensures that the output clipping of the PA1250T will not will not generate excessive distortion. A detented and marked level control on the rear panel provides hidden reliable level adjustments for the channel. Front panel LED indicates signal present, 0 dB, and limit. Phoenix type connectors for inputs and outputs provide easy rack wiring.

Electro-Voice PA1250T Features:

  • Balanced phoenix style input connectors – makes installation easy
  • A phoenix style connector block for all output modes
  • Models available from 160 to 450 watts per channel into 4 ohms or 70/100V
  • Bridge mode operation on all multi channel models provide power flexibility
  • Switch selectable hi-pass filter at either 50Hz or 300Hz meets any installation requirement
  • Independent rear panel level controls provided for each channel
  • All models provide multi-voltage operation from110-240 vac.
  • Integrated “rack ears” allow for rack mounting without additional accessories

Electro-Voice PA1250T Specifications:

  • Continuous rated power (1k Hz, THD 1%) 100v: 270Watts
  • Continuous rated power (1k Hz, THD 1%) 70v: 270 Watts
  • Continuous rated power (20-20k Hz, THD<0,2%) 100v:250 Watts
  • Continuous rated power (20-20k Hz, THD<0,2%) 70v:250 Watts
  • Network Control (IRIS-Net): No
  • Total harmonic distortion: < 0.1 %
  • Intermodulation Distortion (SMTPE): < 0.1 %
  • DIM 30: < 0.1 %
  • Input Sensitivity: 0 dBu
  • Weight Net: 36.38 lbs. (16.5 kg)
  • Dimensions (H x W x D): 3.46" x 19.02" x 15.98" (88 x 483 x 406 mm)
