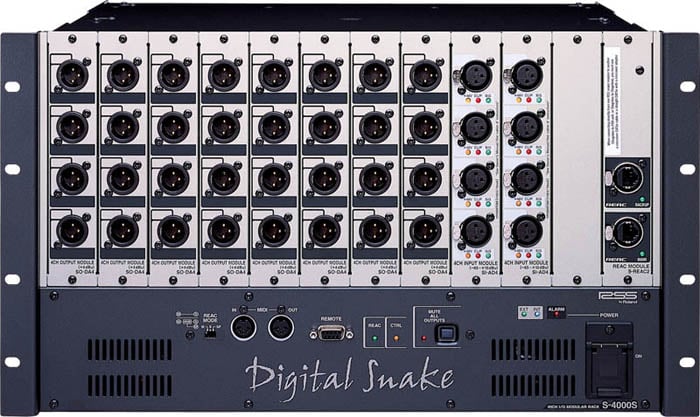

Roland System Group S4000S-0832
Digital Snake Stage Modular Rack 8 x 32

OUR PART #  S4000S-0832

Our Price: $4,295.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

40 Channel I/O modular rack configured to be used at the Front of House position for connection to mixing console with ordinary XLR cables. The configuration would be used with an S-4000S-3208 at the stage position. 8 input + 32 output.

Roland S4000S-0832 Specifications:

  • Number of Channels:
    8 in 32out
  • AD Conversion:
    Sample Rate: 96.0 kHz
    Signal Processing: 24 bit
  • DA Conversion:
    Sample Rate: 96.0 kHz
    Signal Processing: 24 bit
  • Frequency Response:
    -2 dB / +0dB (@ +4 dBu, 20 Hz to 20 kHz)
  • Total Harmonic Distortion + Noise:
    0.05 % or less (Pad: On, Input Gain: +4 dBu, 22 to 20000Hz)
  • Dynamic Range:
    110 dB
  • Cross Talk:
    -80 dB
  • Nominal Input Level:
    -65 to -10dBu (PAD: Off) -45 to +10 dBu (PAD: On) (1 dB step, Max. +28 dBu)
  • PAD:
    20 dB On/Off
  • Input Impedance:
    20 k ohms
  • Nominal Output Level:
    +4 dBu,Max. +22 dBu
  • Output Impedance:
    150 ohms
  • Recommended Load Impedance:
    10k ohms or greater
  • Residual Noise Level (IHF-A, typ.):
    -90 dBu
  • Equivalent Input Noise Level (E.I.N.):
    -128 dB
  • Network Latency:
    375microseconds when using REAC cable only (AD - REAC - DA Latency: about 1.2 ms)
  • Connectors:
    Input: 8 (XLR type, balanced, phantom power, 4 ch inputmodule x 2 )
    Output: 32 (XLR type, balanced, 4 ch output module x 8)
    REAC: MAIN, BACKUP (RJ-45 EtherCon type)
    Remote Connector: 1 (RS-232C,DB-9 type)
    MIDI Connectors: IN, OUT (5-pin DIN type)
  • Indicator:
    EXT Indicator (External Power Supply Unit)
    INTIndicator
    REAC Indicator
    CTRL Indicator
    ALARM Indicator
    MUTE ALL OUTPUTSIndicator
  • AC Power Supply:
    AC 115 V, AC117 V, AC 220 V, AC 230 V, AC 240 V (50/60 Hz)
  • DC Power Supply:
    +24 V (fromoptional external power supply unit : S-240P)
  • Phantom Power:
    +48 V / 14 mA(each input on SI-AD4, remote controlled)
  • Operation Temperature:
    0 to +40 degrees Celsius +32 to +104 degreesFahrenheit

Roland System Group S4000S-0832
Digital Snake Stage Modular Rack 8 x 32

OUR PART #  S4000S-0832

Product Information:

40 Channel I/O modular rack configured to be used at the Front of House position for connection to mixing console with ordinary XLR cables. The configuration would be used with an S-4000S-3208 at the stage position. 8 input + 32 output.

Roland S4000S-0832 Specifications:

  • Number of Channels:
    8 in 32out
  • AD Conversion:
    Sample Rate: 96.0 kHz
    Signal Processing: 24 bit
  • DA Conversion:
    Sample Rate: 96.0 kHz
    Signal Processing: 24 bit
  • Frequency Response:
    -2 dB / +0dB (@ +4 dBu, 20 Hz to 20 kHz)
  • Total Harmonic Distortion + Noise:
    0.05 % or less (Pad: On, Input Gain: +4 dBu, 22 to 20000Hz)
  • Dynamic Range:
    110 dB
  • Cross Talk:
    -80 dB
  • Nominal Input Level:
    -65 to -10dBu (PAD: Off) -45 to +10 dBu (PAD: On) (1 dB step, Max. +28 dBu)
  • PAD:
    20 dB On/Off
  • Input Impedance:
    20 k ohms
  • Nominal Output Level:
    +4 dBu,Max. +22 dBu
  • Output Impedance:
    150 ohms
  • Recommended Load Impedance:
    10k ohms or greater
  • Residual Noise Level (IHF-A, typ.):
    -90 dBu
  • Equivalent Input Noise Level (E.I.N.):
    -128 dB
  • Network Latency:
    375microseconds when using REAC cable only (AD - REAC - DA Latency: about 1.2 ms)
  • Connectors:
    Input: 8 (XLR type, balanced, phantom power, 4 ch inputmodule x 2 )
    Output: 32 (XLR type, balanced, 4 ch output module x 8)
    REAC: MAIN, BACKUP (RJ-45 EtherCon type)
    Remote Connector: 1 (RS-232C,DB-9 type)
    MIDI Connectors: IN, OUT (5-pin DIN type)
  • Indicator:
    EXT Indicator (External Power Supply Unit)
    INTIndicator
    REAC Indicator
    CTRL Indicator
    ALARM Indicator
    MUTE ALL OUTPUTSIndicator
  • AC Power Supply:
    AC 115 V, AC117 V, AC 220 V, AC 230 V, AC 240 V (50/60 Hz)
  • DC Power Supply:
    +24 V (fromoptional external power supply unit : S-240P)
  • Phantom Power:
    +48 V / 14 mA(each input on SI-AD4, remote controlled)
  • Operation Temperature:
    0 to +40 degrees Celsius +32 to +104 degreesFahrenheit
