Radial Engineering Bigshot I/O TRUe Bypass Instrument Selector Pedal

OUR PART #: BIGSHOT-I/O MFR #: R800 7212

Copied to clipboard

The Radial BigShot i/o is an easy to use instrument selector switch that lets you quickly transition between any two instruments and drive the signal to your amp. ...Read more

Radial Engineering Bigshot I/O TRUe Bypass Instrument Selector Pedal Image 1
Radial Engineering Bigshot I/O TRUe Bypass Instrument Selector Pedal Image 2
Radial Engineering Bigshot I/O TRUe Bypass Instrument Selector Pedal Image 3
Radial Engineering Bigshot I/O TRUe Bypass Instrument Selector Pedal
Our Price: $129.99
List Price: $156.00
You save 17%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$4/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

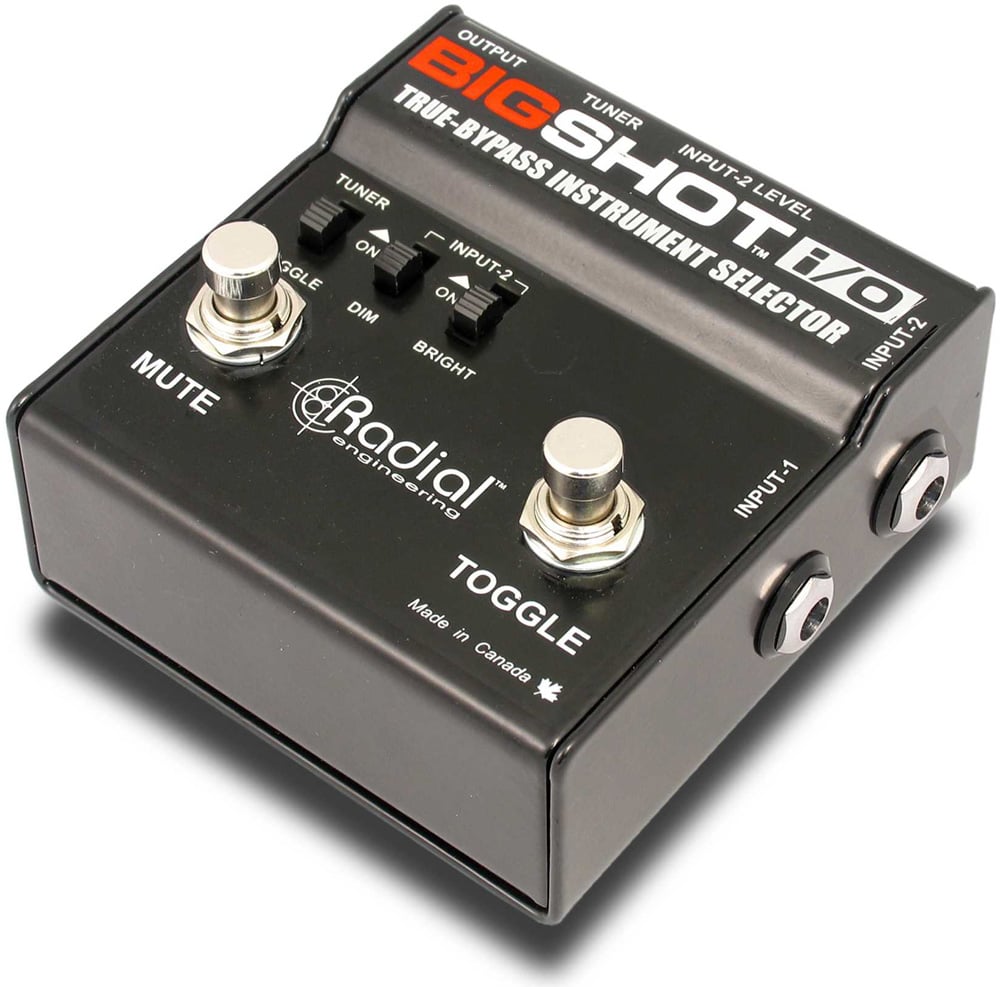

The Radial BigShot i/o is an easy to use instrument selector switch that lets you quickly transition between any two instruments and drive the signal to your amp. Because the i/o is 100% true-bypass, it addresses the needs of the most demanding purist.

To further enhance connectivity, input-B is equipped with a level control called DIM that lets you reduce the signal from the louder of your two instruments so that both instruments are matched to the same volume level when they reach the amplifier. When passive instruments are used, a unique bright switch lets you compensate for high frequency loss due to longer cables.

The BigShot i/o is equipped with a tuner output, keeping it out of the main signal path. With a simple foot stomp on the MUTE switch, the sound going to the amp is turned off and diverted to the tuner for quiet on-stage adjustments. An 'always on' switch also permits on-the-fly quiet tuning should you wish to have the tuner on at all times.

Compact, extremely rugged and completely passive, the BigShot i/o does not require any powering to make it work. This makes it ideal for pedalboards where the use of batteries or power supplies is painful! The BigShot i/o is also perfect for all you instruments and hi-Z line-level signal switching.

Features

  • Toggle two instruments with single foot stomp
  • Adjustable volume control to match levels
  • Separate tuner output and mute switch
  • Compact and rugged for pedalboards
  • Dim switch in input B for louder active instruments to match your passive instrument's level
  • Load compensation for long cables

Specifications

  • Circuit type: Passive true-bypass
  • Frequency Response: 20Hz - 20 kHz
  • Gain: -0.3 dB
  • Connections:
    • Input-1: 1/4" jack
    • Input-2: 1/4" jack with dim and bright controls
    • Output: 1/4" jack switchable between always-on or engaged by mute switch
    • Extras: Tuner/toggle switch
  • Footswitches: Heavy-duty high-cycle: TOGGLE -switches IN-1 or IN-2, MUTE - mutes output
  • Construction: 14 gauge steel, baked enamel finish
  • Size (H x W x D): 2" x 3.6" x 3.9" x 2" (51 x 92 x 99mm)
  • Weight: 1.55 lb (0.70 kg)
  • Conditions: For use in dry locations only, 5-40°C
  • Warranty: Radial 3-year limited warranty
