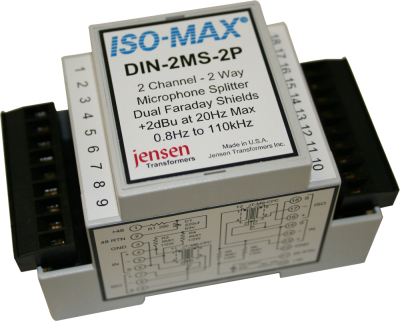

Jensen Transformers DIN-2MS-2P Dual Two-Way Mic Splitter Module (with Phantom Power, Dual Faraday Shields)

The DIN-2MS-2P is designed to be driven from a 150 Ohm microphone source and loaded by the typical 1 kOhm input impedance of microphone preamplifiers. It can be used with balanced or unbalanced sources and/or loads since both primary and secondary are fully balanced. A 30 dB magnetic shield package is standard.

Jensen DIN-2MS-2P Features:

• Provides additional, isolated balanced output as mic"splitter"
• Solves "transformerless" preamp RFI and CMRR problems
• High common-mode rejection: 130 dB at 60 Hz
• Excellent frequency response and time domain performance
• Provides support circuitry for phantom powered microphones
• Convenient DIN Rail Mounting System
• World-Famous Quality Jensen Transformers
• Removable Screw Terminal Connectors
• Reliable Gold-Plated Connector Pins
• Built-in Pad and Termination Options
• Up To 12 Modules on a 3RU Rack Panel
• Quick Disconnect for Easy Replacement
