Gefen EXT-VGARS232-141 VGA RS232 Extender

Gefen's EXT-VGARS232-141 with RS-232 is designed to extend VGA computer video and RS-232 up to 330 feet over just a single CAT5 cable. Connect the Sender to a computer or other VGA source, then connect the Receiver to your display. The RS-232 extension is useful in that it can control functions of your display remotely, such as turning it on or off, and selecting between inputs. Gefen has made installation simple and flexible by choosing widely available CAT5e cable for extension. You can then conceal the CAT5e cable by tucking it under carpet or running it above a ceiling.

Gefen EXT-VGARS232-141 Includes:

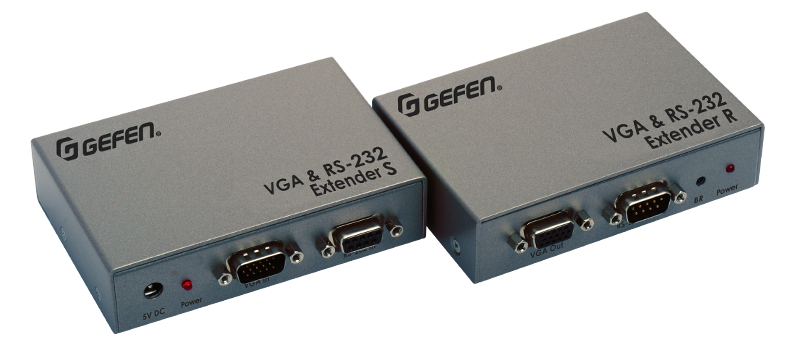

• VGA RS232 Extender - Sender Unit (EXT-VGARS232-141S)
• VGA RS232 Extender - Receiver Unit (EXT-VGARS232-141R)
• 6 ft. VGA cable (M-F) (CAB-VGA-6MF)
• 6 ft. DB-9 cable (CAB-DB9-6MF)
• Two Mounting Brackets (EXT-MP26)
• Two 5V DC Power Supplies (EXT-PS51AIP)
• Quick-Start Guide (QSG-VGARS232-141)

Gefen EXT-VGARS232-141 Features:

• Extends VGA and RS-232 up to 330 feet (100 meters) over one CAT-5 cable
• Supports resolutions up to 1920 x 1200
• Trim pot and Dip switches for fine video adjustment
• Supports RS-232 pins 2 (Rx), 3 (Tx), and 5 (Ground) up to 19,200 bits persecond
• Useful for Digital Signage Applications

Gefen EXT-VGARS232-141 Specifications:

• Video Amplifier Bandwidth: 350 MHz
• Input Video Signal: 1.2V p-p
• Input Sync Signal: 5V p-p (TTL)
• Horizontal Frequency Range: 15 - 70 kHz
• Vertical Frequency Range: 30 - 170 Hz
• Video Input Connector (Sender): (1) VGA HD-15, male
• Video Output Connector (Receiver): (1) VGA HD-15, female
• RS-232 Input Connector (Sender): (1) DB-9, female
• RS-232 Output Connector (Receiver): (1) DB-9, male
• Link Connectors (Sender / Receiver): (1) RJ-45, Shielded
• Power Supplies (Sender / Receiver): 5V DC
• Power Consumption: 5W (max.) each
• Physical:
  • Dimensions (WxDxH): 4" x 2.8" x 1.1"
  • Shipping Weight: 4 lbs.
