Product Overview

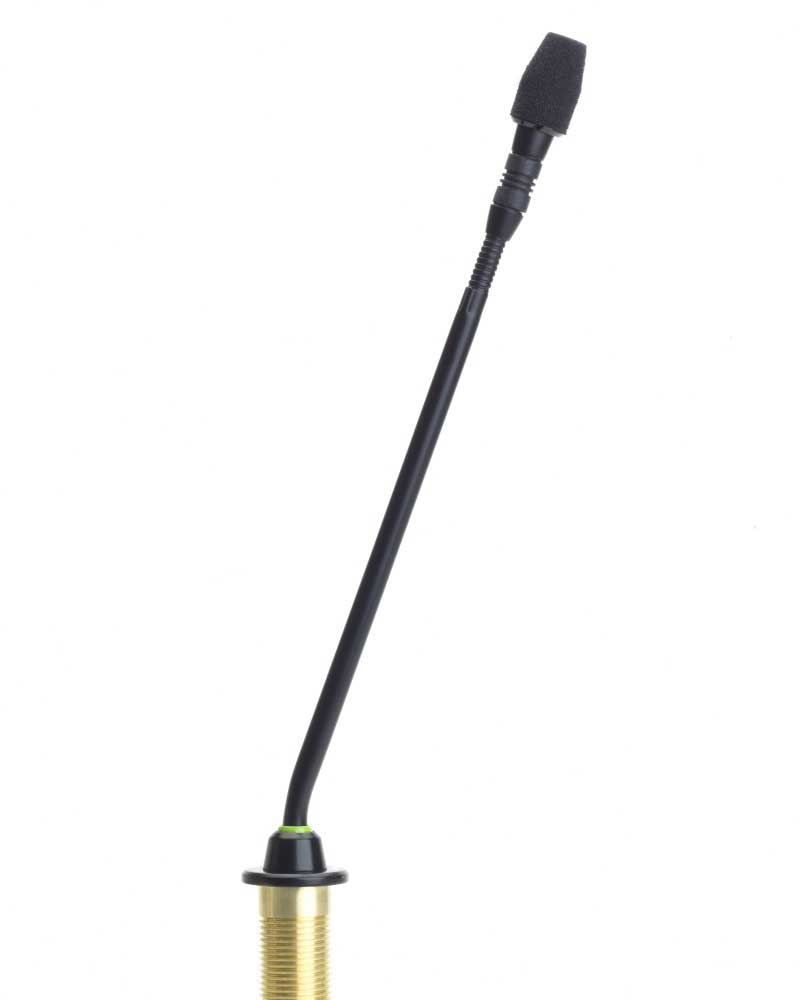

Flexible in more ways than one, the MX410/C Microflex Modular Gooseneck Microphone delivers unsurpassed style and performance for conference rooms and similar applications. The 10 inch flexible gooseneck mic features a shock mount as well as a surface mounted pre-amp, along with LED status indicators. This desktop miking solution is fully compatible with SLX wireless systems.
Includes
- MX410 Microflex® 25.4 cm (10 in.) Modular Gooseneck Microphone
- Snap-fit Foam Windscreen
- Surface Mount Preamp
- Fastening Wing Nut
- (2) Rubber Isolation Rings
- 5-Pin XLR Female Connector
Features
- Gooseneck length: 10 inch / 25.4 cm
- Cardioid Polar Pattern
- Low profile, aesthetic design
- Wide dynamic range and smooth frequency response
- RF filtering with CommShield™ technology
- Status indicator, Bi-Color LED at gooseneck bottom or red light ring on gooseneck top
- Surface Mount Preamp
Specifications
- Type: Electret Condenser
- Frequency Response: 50–17000 Hz
- Polar Pattern: Cardioid
- Output Impedance: 170 Ω
- Output Configuration: Active Balanced
- Sensitivity @ 1 kHz, open circuit voltage: −35 dBV/Pa (18 mV), 1 Pa=94 dB SPL
- Maximum SPL, 1 kHz at 1% THD, 1 kΩ load: 121 dB
- Self Noise, A-weighted: 28 dB SPL
- Signal-to-Noise Ratio, Ref. 94 dB SPL at 1 kHz: 66 dB
- Dynamic Range, 1 kΩ load, @ 1 kHz: 93 dB
- Common Mode Rejection: 10 to 100,000 kHz, 45 dB, minimum
- Clipping Level at 1% THD: −8 dBV (0.4 V)
- Polarity:
- 3-pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
- 5-pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connector
- Weight: 0.068 kg (0.150 lbs)
- Logic Connections
- LED IN: Active low (≤1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V.
- LOGIC OUT: Active low (≤1.0V), sinks up to 20mA, TTL compatible. Absolute maximum voltage: -0.7V to 50V (up to 50V through 3kΩ).
- Mute Switch Attenuation: -50 dB minimum
- Cable (MX400DP): 6.1 m (20 ft) attached cable with shielded audio pair terminated at a 3-pin male XLR and three unterminated conductors for logic control
- Environmental Conditions:
- Operating Temperature: –18–57°C (0–135°F)
- Storage Temperature: –29–74°C (–20–165°F)
- Relative Humidity: 0–95%
- Power Requirements: Phantom Power, 48–52 V DC, 8.0 mA
