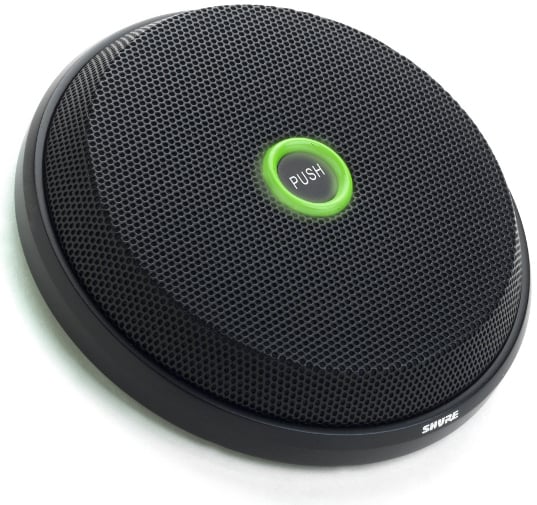

Shure MX396/C-TRI Microflex Tri-Element Boundary Mic

The Shure Microflex® MX396/C-TRI Boundary Microphone is a unique and versatile tool for conference room installations. Clean and simple in appearance, the MX396/C-TRI is a three-element boundary microphone, combining the coverage of multiple microphones into one small, compact package.

The MX396/C-TRI features a tri-element 90-0-90 mic, adjustable to 120-120-120 degrees, cardioid, back or bottom exit cable, mute output, LED input.

Shure MX396/C-TRI Microflex Tri-Element Boundary Microphone Features:

• End of table (300°), center of table (360°), or crosstable (bidirectional) coverage patterns
• Individual audio output for each element
• Bi-color status indicator
• Programmable mute switch
• Logic input/output for remote LED and mute control
• CommShield® Technology

Shure MX396/C-TRI Microflex Tri-Element Boundary Microphone Specifications:

• Type: Condenser (electret bias)
• Frequency Response: 50 Hz to 17 kHz
• Polar Pattern: 3x Cardioid
• lmpedance: EIA Rated at 150 Ohms (170 Ohmsactual)
• Phantom power required? 48–52 Vdc phantom, 12.0 mA
