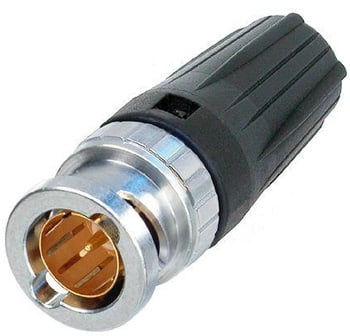

Neutrik NBNC75BJP9 75 Ohm BNC Cable Connector with Rear Twist

The RearTwist® BNC cable connector offers a true 75 Ohm design and is perfectly suitable for HD applications. The patented Rear Twist® boot guarantees easy access even in high density applications and offers color coding. This connector is suitable for use with Belden 1505F, Bryant BD SD53F, and Cordial CVI 08-37 HD cables with a crimp size of 1.6 mm (square) for the pin and 6.47 mm (hex) for the shield.

Neutrik NBNC75BJP9 Features:

• “rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
• Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front.
• True 75 Ohm design meets the stringent HDTV / DVD requirements
• Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles
• Snug-fit center pin insert provides tactile feedback
• Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
• Excellent cable protection and retention
• Precise Swiss machined brass parts for outstanding durability
• Accessories include color coded boots in 10 standard colors, crimp tool and dies
