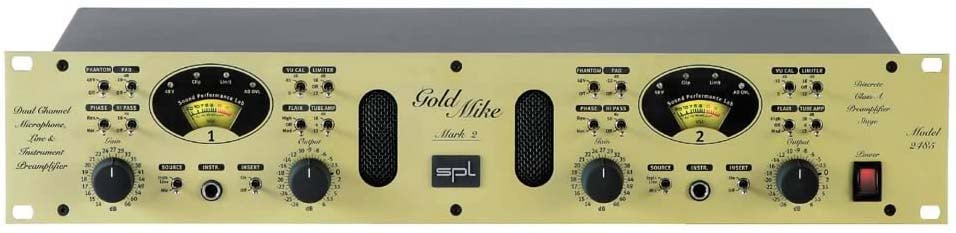

SPL GOLD-MIKE-MARK-2 GoldMike Mk2 Dual Channel Tube Microphone and Instrument Preamplifier

OUR PART #: GOLD-MIKE-MARK-2 MFR #: 2485

Copied to clipboard

Like its successful predecessor, the GoldMike Mark2 retains a hybrid solid state and tube construction to combine the best of both worlds. ...Read more

SPL GOLD-MIKE-MARK-2 GoldMike Mk2 Dual Channel Tube Microphone And Instrument Preamplifier Image 1
SPL GOLD-MIKE-MARK-2 GoldMike Mk2 Dual Channel Tube Microphone And Instrument Preamplifier Image 2
SPL GOLD-MIKE-MARK-2 GoldMike Mk2 Dual Channel Tube Microphone And Instrument Preamplifier
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Like its successful predecessor, the GoldMike Mark2 retains a hybrid solid state and tube construction to combine the best of both worlds.

The transistor stage is composed of single transistors in a class A design. The circuitry is fully discrete, and each transistor is completely optimized for its specific task. You will not find any IC’s in this preamplifier stage because they cannot be optimized for this specific application to the degree we aimed for. This all new discrete class A transistor stage is a genuine innovation in the entire preamplifier market at this price level.

The GoldMike MK2's new features provide an amazing tonal flexibility and versatility, making it a perfect dual-channel front end for any modern production environment.

Features:

  • Discrete Class A solid stage
  • Tube drive in three different intensity levels
  • Flair presence enhancement in two switchable settings
  • Switching inserts
  • Pre-output limiter stage (extremely fast diode-based operation, perfect for A/D converter protection)
  • VU metering with three different, switchable display ranges
  • Front panel instrument input, separate rear-side microphone and line inputs
  • Phantom power, phase reverse, pad and high-pass filter (50Hz)
  • Options include 24/96 AD converter and in/output transformers by Lundahl

Specifications:

  • Frequency response: ‹10Hz bis 90kHz (-3dB)
  • Input impedance:
    • Microphone, XLR: 2,8kOhm
    • Line In, TRS:10kOhm
    • Instr. In TRS: 1mOhm
  • Output impedance (XLR and TRS): 50Ohm
  • THD+N
    • Input level -30dBu, Gain 30dBu: 0,016 %
    • Input level -40dBu,Gain 40dBu: 0,017 %
    • Input level -50dBu, Gain 50dBu: 0,022 %
    • Input level -60dBu, Gain 60dBu: 0,048 %
  • Noise (A-weighted, R=40Ohm)
    • Gain 30dB: -91,2dBu
    • Gain 40dB:-86,6dBu
    • Gain 50dB: -78,7dBu
    • Gain 60dB: -69,3dBu
  • Dynamic range (Gain 30dB): 110dB
  • E.I.N.: 128dBu
  • Max. input level
    • Microphone, XLR: +7dBu
    • Microphone, XLR +PAD:+28dBu
    • Line In, TRS: +23dBu
    • Instr. In TRS: +7dBu
    • Instr. In TRS +PAD: +14dBu
  • Max. output level:
    • Balanced, XLR+ TRS +26,8dBu
    • Unbalanced, XLR+ TRS +21,5dBu
  • CMRR:
    • 1 KHz, Gain 30dB: ›75dB
    • 10 KHz, Gain 30dB: ›75dB
  • Power consumption: 25W
  • Dimensions: W x H x D (mm) 482 x 88 x 210
  • Weight: 4.1kg
