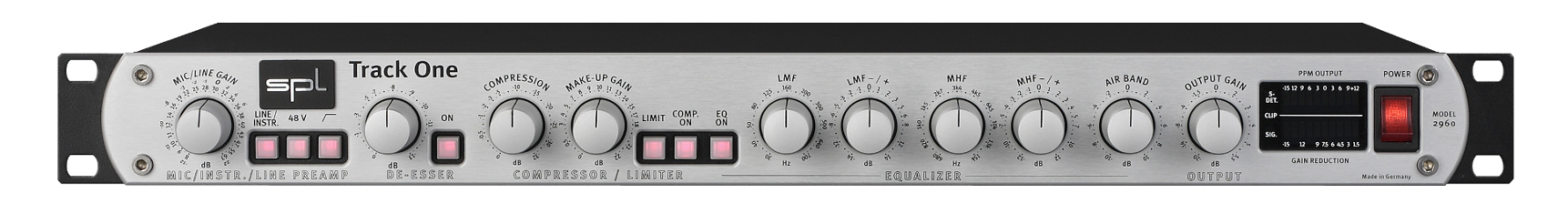

SPL TRACK-ONE Track One Transistor Preamp 2058

OUR PART #: TRACK-ONE MFR #: 2960

Copied to clipboard

The Track One is a complete mono channel strip for the high-quality recording and processing of vocals and instruments and in spite of its high level of performance... ...Read more

SPL TRACK-ONE Track One Transistor Preamp 2058 Image 1
SPL TRACK-ONE Track One Transistor Preamp 2058 Image 2
SPL TRACK-ONE Track One Transistor Preamp 2058
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Track One is a complete mono channel strip for the high-quality recording and processing of vocals and instruments and in spite of its high level of performance, it is very competitively priced. It is ideal for the fast and reliable recording of vocals or acoustic instruments but also suitable for live performance and AV post-editing.

Features:

  • Preamp stages optimized for all microphone types and instruments
  • SPL’s De-Esser
  • Compressor/limiter stage
  • 3-band EQ stage
  • Output stage with metering
  • Balanced XLR and Jack connectors (parallel use possible)
  • Options: A/D converter and Lundahl input transformer

Specifications:

  • Microphone Input:
    • Frequency Response: 10 Hz-200 kHz (200 kHz = -3 dB)
    • Common Mode Rejection: 1 kHz: -80 dB / 10 kHz: -68 dB (at -20dBu)
    • THD & N amplification A-weighted: 20dB = 97.5 dBu; 40 dB= -91.0 dBu; 65 dB = -69.6 dBu
    • Dynamic Response: 115 dB
  • Instrument Input:
    • Frequency Response: 10Hz - 180 kHz (180 kHz = -3 dB)
    • THD & N amplification A-weighted: 7dB = -98.4dBu; 20 dB = -95.8 dBu; 42 dB = -77.2 dB
    • Input Impedance Line: 12 kOhm / Instr.: 1 MOhm
    • Max. Input Level Line: +25 dBu / Instr.: =13 dBu
    • Dynamic Response: 115 dBu
    • Outputs: Max output level XLR/jack = +20dBu; Output impedance=50 Ohm
  • Power Supply
    • Toroidal transformer: 15 VA
    • Fuses: 315 mA (230 V / 50 Hz); 630 mA ( 115 V / 60Hz)
  • Dimensions: Stand.-EIA-19 inch/1U housing: 482 x 44 x 210 mm
  • Weight: 3.1 kg
