Bogen ACD2X2 Active Tile Replacement Speaker 1W, Off-White

OUR PART #: ACD2X2 MFR #: ACD2X2

Copied to clipboard

Bogen’s ACD2X2 Drop-In Ceiling Speaker is a full-range speaker that allows for fast and easy installation, which saves installation time, effort, and cost. ...Read more

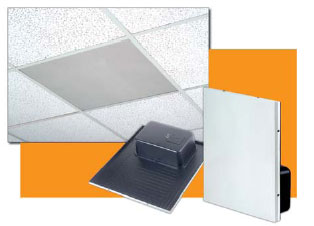

Bogen ACD2X2 Active Tile Replacement Speaker 1W, Off-White Image 1
Bogen ACD2X2 Active Tile Replacement Speaker 1W, Off-White
Our Price: $90.61
List Price: $160.75
You save 44%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$3/mo* with 36 month financing. ‡
Limited Time. Learn How
This item can only be purchased in quantities of 2

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Bogen’s ACD2X2 Drop-In Ceiling Speaker is a full-range speaker that allows for fast and easy installation, which saves installation time, effort, and cost. The ACD2X2 is a 2' x 2' speaker that fits perfectly into place in 2' x 2' ceiling grids – without needing to cut ceiling tiles or requiring the use of tile support rails. The ACD2X2 can also be easily installed in 2' x 4' ceiling grids – just make one cut to the ceiling tile, position the support rail (included), and drop the speaker into place.

Features:

  • Finely perforated grille over the entire front of speaker
  • Fully enclosed, industrial grade steel construction
  • Enclosed Back Can
  • Self-contained 1-watt amplifier
  • 8'' main cone with secondary high-frequency cone
  • Available in off-white and bright white (“U” versions)
  • grille finish
  • Recessed Volume Control (front-mounted)
  • Complies with Requirements of UL-2043
  • Support Rail Crossbar (included)
  • Seismic attachment points

Specifications:

  • Frequency Response: 95 Hz - 12 kHz
  • Max. SPL @ 1W / 1m: 94 dB
  • Dispersion @ 2 kHz
  • (6 dB down): 100°
  • Cone Material & Surround: Treated paper
  • Cones: 8" main cone with secondary
  • high frequency cone
  • Maximum Amplifier Output: 1W
  • Typical Operational Current: 1 CU (50 mA)
  • Input Impedance: 2000 ohms
  • Typical Input Sensitivity: 125 mV rms
  • Supply Voltage: 24V DC
  • Magnet Weight: 10 oz.
  • Connection: Via wire nuts (included in electrical box)
  • Dimensions: 23 -7/8" W x 5" H x 23-7/8" D
  • Product Weight: 12 lb.
  • Plenum-rated, complies with requirements of standard UL-2043.

Note

NOTE: Sold each in pairs only.
