West Penn 25210-500

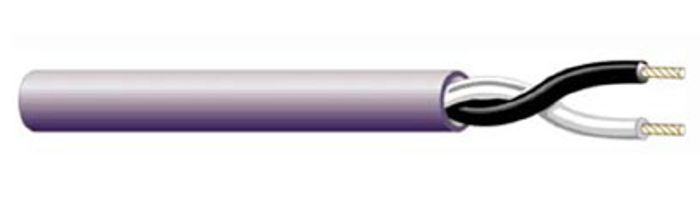

500 ft of Single-Pair 10AWG Wire with Stranded Bare Copper Conductors & Plenum PVC Jacket

OUR PART #  25210-500

Our Price: $436.91
List Price: $730.78
You save 40%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

10/2 Stranded bare copper conductors, unshielded with an overall jacket. For use with cluster speaker cable – Class 2 Plenum.

Construction Parameters:

  • Conductor: 10 AWG Bare Copper
  • Stranding: 65 x 28
  • Insulation Material: Flouropolymer
  • Insulation Thickness: 0.008" Nominal
  • Number of Conductors: 2
  • Shield: None
  • Drain: None
  • Jacket Material: Plenum PVC
  • Jacket Thickness: 0.015" Nominal
  • Overall Cable Diameter: 0.275" Nominal
  • Approximate Cable Weight: 55 lbs./ 1M Nominal
  • Flame Rating: NFPA-262 Flame Test

Electrical & Environmental Properties:

  • Temperature Rating: -10 degrees C to +60 degrees C
  • Operating Voltage: 150V RMS
  • Max. Capacitance Between Conductors @ 1 kHz: 34 pf/ft. Nominal
  • DC Resistance per Conductor @ 20 deg. C: 1.1 ohms/1 M Nominal
  • Insulation Colors: Black, White
  • Jacket Color: Ivory

Mechanical Properties:

  • Max. Recommended Pull Tension: 248 lbs.
  • Min. Bend Radius (install): 2.7"

West Penn 25210-500
500 ft of Single-Pair 10AWG Wire with Stranded Bare Copper Conductors & Plenum PVC Jacket

OUR PART #  25210-500

Product Information:

10/2 Stranded bare copper conductors, unshielded with an overall jacket. For use with cluster speaker cable – Class 2 Plenum.

Construction Parameters:

  • Conductor: 10 AWG Bare Copper
  • Stranding: 65 x 28
  • Insulation Material: Flouropolymer
  • Insulation Thickness: 0.008" Nominal
  • Number of Conductors: 2
  • Shield: None
  • Drain: None
  • Jacket Material: Plenum PVC
  • Jacket Thickness: 0.015" Nominal
  • Overall Cable Diameter: 0.275" Nominal
  • Approximate Cable Weight: 55 lbs./ 1M Nominal
  • Flame Rating: NFPA-262 Flame Test

Electrical & Environmental Properties:

  • Temperature Rating: -10 degrees C to +60 degrees C
  • Operating Voltage: 150V RMS
  • Max. Capacitance Between Conductors @ 1 kHz: 34 pf/ft. Nominal
  • DC Resistance per Conductor @ 20 deg. C: 1.1 ohms/1 M Nominal
  • Insulation Colors: Black, White
  • Jacket Color: Ivory

Mechanical Properties:

  • Max. Recommended Pull Tension: 248 lbs.
  • Min. Bend Radius (install): 2.7"
