Intelix AVO-V1-WP
Composite Video Wall Plate Balun

OUR PART #:  AVO-V1-WP

The Intelix AVO-V1-WP-F wallplate balun is an ideal solution for transmitting composite video over structured cabling, such as Cat 5.
Learn More
Our Price: $76.46
List Price: $84.95
You save 10%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Intelix AVO-V1-WP
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

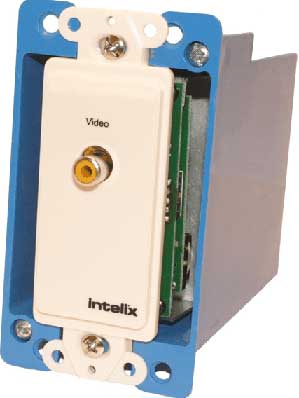

The Intelix AVO-V1-WP-F wallplate balun is an ideal solution for transmitting composite video over structured cabling, such as Cat 5. Used in pairs or with the rack-mountable Intelix AVO-V1-F balun, AVO-V1-WP-F wallplate baluns replace bulky coaxial cable and are perfect for security and video signage applications. Features a female RCA connector on a standard decora plate.

Intelix AVO-V1-WP Wall Plate Balun Features:

  • Max Distance: 2200 feet color, 2500 feet black and white
  • Bandwidth: Video: DC to 8 MHz
  • Power: No power required
  • Maximum Input: 1.1 Vp-p
  • Insertion Loss: Less than 2 dB over the frequencies from DC to 8 MHz
  • Return Loss: Better than15 dB over the frequency range from DC to 8 MHz
  • Common Mode Rejection:Greater than 40 dB @ 8MHz
  • Cable: Cat 5, Cat 5e, Cat 6, and Cat 7 compatible
  • Connectors: One (1) female RCA to one (1) RJ45
  • Enclosure: Front:standard decora wallplate
    Rear: metalcasing
  • Dimensions: 4.0" x 1.4" x 1.7"
  • Shipping Weight: 0.2 lbs.
  • PinOut: 7 & 8, pair 4
  • Temperature: Operating: 32° to 131° F
    Storage: -4° to 185° F
    Humidity: up to 95%
  • Warranty: 2 years
  • Included Accessories: None
