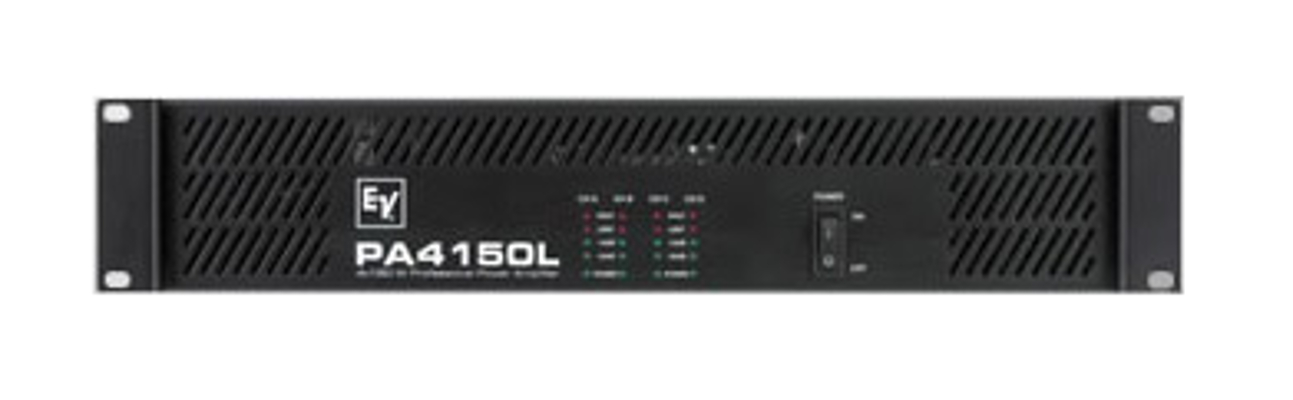

Electro-Voice PA4150L 4-Channel Class AB Power Amplifier, 4x160W at 4 Ohms

The Electro-Voice® PA4150 is from the PA series of professional commercial audio amplifiers. The direct path airflow design reduces the heat buildup significantly and allows for 4 full amplifier channels in a slim two rack space chassis. The audio performance of the PA4150 is superior and fulfills the requirements in many demanding long term applications from sound reinforcement, paging or life safety installations.

The PA4150 features many of the same comprehensive protection circuits typical in EV amplifiers. Complete protection is provided for high temperature, audio limiters, power up delay and peak current limiters. In addition to the rated output power, the PA4150 provides excellent headroom for a wide dynamic range on music signals. A selectable 50Hz or 300Hz hi-Pass filter makes it easy to incorporate the unit into The onboard dynamic limiter ensures that the output clipping of the PA4150 will not will not generate excessive distortion. The amplifier channels can be bridged for more power flexibility.

Marked level controls on the rear panel provide hidden reliable level adjustments for each channel. Front panel LEDs indicate signal present, 0 dB, and limit. Phoenix type connectors for inputs and outputs provide an easy rack wiring.

Electro-Voice PA4150L Features:

• Balanced phoenix style input connectors – makes installation easy.
• A phoenix style connector block for all output modes.
• Models available from 160 to 450 watts per channel into 4 ohms or 70/100V.
• Bridge mode operation on all multi channel models provide power flexibility.
• Switch selectable hi-pass filter at either 50Hz or 300Hz meets any installation requirement.
• Independent rear panel level controls provided for each channel
• All models provide multi-voltage operation from 110-240v AC.
• Integrated “rack ears” allow for rack mounting without additional accessories.

Electro-Voice PA4150L Specifications:

• Continuous rated power (1k Hz, THD 1%) 4 ohm: 160Watts
• Continuous rated power (1k Hz, THD 1%) 8 ohm: 100Watts
• Continuous rated power (20-20k Hz, THD < 0,2%) 4ohm: 150 Watts
• Continuous rated power (20-20k Hz, THD < 0,2%) 8ohm: 75 Watts
• Slew Rate: > 16 V / µs
• Amplifier Gain (dB): 30dB
• Network Control (IRIS-Net): No
• Total harmonic distortion: < 0.1 %
• Intermodulation Distortion (SMTPE): < 0.1 %
• DIM 30: < 0.1 %
• Input Sensitivity: 0 dBu
• Weight Net: 18 kg (39.68 lbs.)
• Dimensions (H x W x D): 3.46" x 19.02" x 15.98" (88 x 483 x 406 mm)
