Community R.25-94TZ
Qty:
In Stock

Similar Products

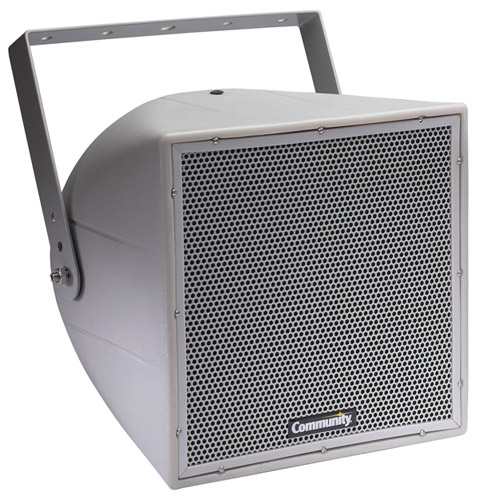

Community's R.25-94TZ is a 2-way, full-range loudspeaker system designed to provide high quality voice and music reproduction in applications requiring extreme weather resistance. It is designed to withstand long-term exposure to tough, environmental conditions and to provide performance normally associated only with indoor loudspeakers.

The R.25-94TZ has an 8" cone LF driver and a 3/4" exit HF compression driver with a weather resistant diaphragm. The HF driver is coupled to a nominal 90 x 40 degree horn. The HF assembly is coaxially mounted with the LF driver. An input autoformer with switchable taps provides impedance matching to 70V or 100V lines. The enclosure and HF horn are molded of UV resistant gray polyethylene. All exposed hardware is stainless steel. The Weather-Stop grille assembly, retained by stainless steel screws to the front of the enclosure, consists of three layers.

Community R.25-94TZ Applications:

  • Convention centers
  • Fill speaker for stadia, athletic fields, arenas andrace tracks
  • Outdoor background music/paging systems
  • Theme and amusement parks
  • Fairgrounds and rodeos
  • Malls, cruise ships, skating rinks
  • Swimming pools

Community R.25-94TZ Features:

  • High fidelity, all horn loaded
  • Multi-tap 200W autoformer for 70V and 100V inputs
  • Rotomolded, UV resistant enclosure
  • High efficiency
  • Integral mounting points
  • Optional "all-black" version with black enclosure, black powder coated grille and black yoke (model R.25-94BTZ)
  • High power passive crossover
  • Five-year product warranty/Fifteen-year enclosure warranty

Community R.25-94TZ Specifications:

  • Loudspeaker Type: 2-way, horn-loaded, coaxial, weather-resistant
  • Operating Range: 100Hz to 16kHz, 160Hz to 13kHz (+/-3dB)
  • Max Input Ratings: 200W, 70V/100V
  • Recommended Power Amplifier: 25W to 200W @ 70V; 50W to200W @ 100V
  • Sensitivity (1W/1m): 96 dB SPL (160 Hz to 10 kHz 1/3octave bands); 96 dB SPL (250 Hz to 4 kHz speech range)
  • Maximum Output on 200W Tap: 119 dB SPL
  • 200W Nominal Impedance: 25 ohms
  • 200W Minimum Impedance: 16.2 ohms @ 9kHz
  • Nominal -6dB Beamwidth: 90° H (+7°/-13°, 2kHz to 10kHz); 40°V (+35°/-10°, 2kHz to 10kHz)
  • Axial Q/DI: 13.5/11.3, 2kHz to 10kHz
  • Crossover Frequency: 2kHz
  • Recommended Signal Processing: 100 Hz high pass filter
  • Drivers: LF (1) 8" cast frame, Cool-Coil; HF (1) 3/4"exit, titanium free, Ferrofluid-cooled
  • Driver Protection: DYNA-TECH protection circuitry
  • Input Connection: 16-2 SJOW (12 ft)
  • Controls: 4 position autoformer TAP select switch
    70V switchable taps @200W, 100W, 50W, 25W
    100V switchable taps @ 200W, 100W, 50W
  • Enclosure: Rotomolded HDPE, light gray color
  • Mounting/Rigging Provisions: (5) rigging points (M8 hardware); 1-3/8" pole mount socket
  • Grille: 16-gauge perforated stainless steel, 3-layerWeather Stop grille
  • Required Accessories: 24 dB/Oct high pass filter
  • Supplied Accessories: (1) Stainless steel (304) yoke bracket (1) Aiming strap
  • Optional Accessories: Pole mount system
  • Dimensions (H x W x D): 11.3" x 11.3" x 13.3"
  • Weight: 23 lbs
  • Shipping Weight: 26.5 lbs
