Community R.5-99TZ

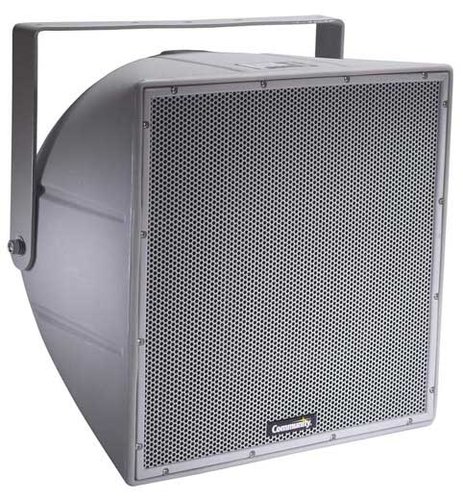

R Series 12" 2-Way Weather-Resistant Loudspeaker with 90°x90° Dispersion and 70V/100V Transformer in Grey

OUR PART #:  R.5-99TZ

Community's R.5-99TZ two-way, full-range loudspeaker system is engineered to provide quality full-range sound projection in a variety of outdoor and indoor applications.
Learn More
Our Price: $958.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Community R.5-99TZ
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Community's R.5-99TZ two-way, full-range loudspeaker system is engineered to provide quality full-range sound projection in a variety of outdoor and indoor applications. Its wide range, smooth frequency response and high efficiency ensure both high fidelity music reproduction and superb projection of clear intelligible speech with very low distortion. An input autoformer with switchable taps provides impedance matching to 70V or 100V lines. Five-year limited product warranty; fifteen-year enclosure warranty.

Community R.5-99TZ Features:

  • Weather-resistant, roto-molded UV enclosure
  • Weather-treated drivers and crossovers
  • Corrosion-resistant zinc-rich epoxy dual-layer powder coated steel grille and yoke
  • Pattern control down to 630 Hz
  • High efficiency
  • Integral mounting points
  • High power passive crossover
  • DYNA-TECH protection circuitry
  • Multi-tap 200W autoformer for 70V and 100V inputs

Community R.5-99TZ Specifications:

  • Loudspeaker Type:  2-way, horn-loaded coaxial, weather-resistant
  • Operating Range:
    • 85 Hz to 16 kHz
    • 125 Hz to 10 kHz (+/-5dB)
  • Max Input Ratings:  200W, 70V/100V
  • Recommended Power Amplifier:
    • 25W to 200W @ 70 Volts
    • 50W to 200W @100 Volts
  • Sensitivity (1W/1m):
    • 100 dB SPL (125Hz to 10kHz 1/3 octave bands)
    • 100 dB SPL (250Hz to 4kHz speech range)
  • Maximum Output on 200W Tap:  123 dB SPL
  • 200W Nominal Impedance:  25 Ohms
  • 200W Minimum Impedance:  16.2 Ohms @ 8.6 kHz
  • Nominal -6dB Beamwidth:  90° H (+2° / -43°, 1.6 kHz to 12.5 kHz); 90°V (+6° / -46°, 1.6 kHz to 12.5 kHz)
  • Axial Q / DI:  13.6/11.3, 1.6 kHz to 10 kHz
  • Crossover Frequency:  2 kHz
  • Recommended Signal Processing:  90 Hz high pass filter
  • Crossover Frequency:  2 kHz
  • Recommended Signal Processing:  90 Hz high pass filter
  • Drivers:
    • LF:  (1) 12" Ferrofluid-cooled
    • HF:  (1) 1" exit, titanium free, Ferrofluid-cooled
  • Driver Protection:  DYNA-TECH
  • Input Connection:  12 foot SJOW #16 gauge
  • Controls:
    • 4 position autoformer TAP select switch
    • 70V switchable taps @ 200W, 100W, 50W, 25W
    • 100V switchable taps @ 200W, 100W, 50W
  • Enclosure:  Rotomolded LLDPE, light grey
  • Mounting/Rigging Provisions:  (5) 3/8-16 rigging points
  • Grille:  3-layer WeatherStop, light grey (Zinc-rich epoxy dual-layer powder coated perforated steel grille, foam, woven poly mesh)
  • Environmental Performance:  IEC529 IP55W rating with a minimum 5-degree downward aiming angle
  • Required Accessories:  24 dB/Oct high pass filter
  • Supplied Accessories:
    • (1) Yoke bracket, light grey
    • (1) Aiming strap
  • Optional Accessories:  PMB Series pole mount brackets
  • Dimensions:  16" H x 16" W x 15.94" D
  • Weight:  37 lbs
