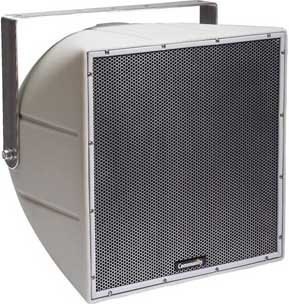

Biamp R.5-99Z 12" 2-Way Coaxial Speaker, Weather Resistant, White

OUR PART #: R.5-99Z MFR #: R.5-99Z

Copied to clipboard

Community's R.5-99Z two-way, full-range loudspeaker system is engineered to provide quality full-range sound projection in a variety of outdoor and indoor applications. ...Read more

Biamp R.5-99Z 12" 2-Way Coaxial Speaker, Weather Resistant, White Image 1
Biamp R.5-99Z 12" 2-Way Coaxial Speaker, Weather Resistant, White
Our Price: $1,486.00

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$42/mo* with 36 month financing. ‡
Limited Time. Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Community's R.5-99Z two-way, full-range loudspeaker system is engineered to provide quality full-range sound projection in a variety of outdoor and indoor applications. Its wide range, smooth frequency response and high efficiency ensure both high fidelity music reproduction and superb projection of clear intelligible speech with very low distortion. Five-year limited product warranty; fifteen-year enclosure warranty.

Community R.5-99Z Applications:

  • Fill speaker for stadia, athletic fields, arenas and race tracks
  • Convention centers
  • Outdoor background music / paging systems
  • Theme and amusement parks
  • Fairgrounds, rodeos, air shows
  • Malls, cruise ships, skating rinks
  • Swimming pools
  • Portable sound systems

Community R.5-99Z Features:

  • Rotomolded, UV enclosure
  • Pattern control down to 630 Hz
  • High efficiency
  • Integral mounting points
  • High power passive crossover
  • DYNA-TECH active protection circuitry
  • Five-year product warranty / Fifteen-year enclosure warranty

Community R.5-99Z Specifications:

  • Loudspeaker Type: 2-way, horn-loaded coaxial, weather-resistant
  • Operating Range: 85 Hz to 16 kHz; 125 Hz to 10 kHz (+/-4dB)
  • Max Input Ratings: 200W Continuous, 500W Program; 40 Volts RMS, 89 Volts momentary peak
  • Recommended Power Amplifier: 420W to 600W @ 8 ohms
  • Sensitivity (1W/1m): 101 dB SPL (125 Hz to 10 kHz 1/3 octave bands); 101dB SPL (250 Hz to 4 kHz speech range)
  • Maximum Output: 124 dB SPL/131 dB SPL (peak)
  • Nominal Impedance: 8 ohms
  • Minimum Impedance: 4.2 ohms @ 9.7 kHz
  • Nominal -6dB Beam width: 90° H x 90° V
  • Axial Q/DI: 13.6/11.3, 1.6 kHz to 10 kHz
  • Crossover Frequency: 2 kHz
  • Recommended Signal Processing: 90 Hz high pass filter
  • Drivers: LF (1) 12" Ferrofluid-cooled, HF (1) 1" exit, titanium free, Ferro fluid-cooled
  • Driver Protection: DYNA-TECH
  • Input Connection: 12 foot SJOW #16 gauge
  • Controls: None
  • Enclosure: Rotomolded HDPE, light grey
  • Mounting/Rigging Provisions: (5) 3/8-16 rigging points
  • Grille: 3-layer WeatherStop (Perforated steel, foam, stainless steel mesh)
  • Required Accessories: 24 dB/Oct high pass filter
  • Supplied Accessories: (1) Stainless Steel (304) yoke bracket; (1) Aiming strap
  • Optional Accessories: Pole mount system
  • Dimensions: 16" H x 16" W x 16" D
  • Weight: 35 lbs
  • Shipping Weight: 40 lbs
