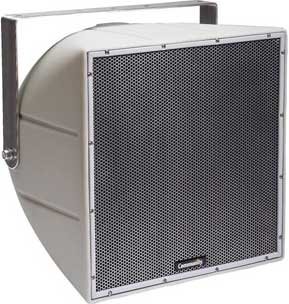

12" 2-Way Horn-Loaded Coaxial Weather-Resistant Speaker with 90°x40° Dispersion and Yoke

OUR PART #:  R.5-94Z

Community's R.5-94Z two-way, full-range loudspeaker system is engineered to provide quality full-range sound projection in a variety of outdoor and indoor applications.
Learn More
Our Price: $908.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Community R.5-94Z
Qty:
In Stock

Similar Products

Community's R.5-94Z two-way, full-range loudspeaker system is engineered to provide quality full-range sound projection in a variety of outdoor and indoor applications. Its wide range, smooth frequency response and high efficiency ensure both high fidelity music reproduction and superb projection of clear intelligible speech with very low distortion. Five-year limited product warranty; fifteen-year enclosure warranty.

Applications:

  • Fill speaker for stadium, athletic fields, arenas and race tracks
  • Convention centers
  • Outdoor background music / paging systems
  • Theme and amusement parks
  • Fairgrounds, rodeos, air shows
  • Malls, cruise ships, skating rinks
  • Swimming pools
  • Portable sound systems

Community R.5-94Z Features:

  • Rotomolded, UV enclosure
  • Pattern control down to 630 Hz
  • High efficiency
  • Integral mounting points
  • High power passive crossover
  • DYNA-TECH active protection circuitry
  • Five-year product warranty / Fifteen-year enclosure warranty

Community R.5-94Z Specifications:

  • Loudspeaker Type: 2-way, horn-loaded coaxial, weather-resistant
  • Operating Range: 85 Hz to 16 kHz; 125 Hz to 10 kHz(+/-4dB)
  • Max Input Ratings: 200W Continuous, 500W Program; 40 Volts RMS, 89 Volts momentary peak
  • Recommended Power Amplifier: 420W to 600W @ 8 ohms
  • Sensitivity (1W/1m): 101 dB SPL (125 Hz to 10 kHz 1/3 octave bands); 102 dBSPL (250 Hz to 4 kHz speech range)
  • Maximum Output: 124 dB SPL/131 dB SPL (peak)
  • Nominal Impedance: 8 ohms
  • Minimum Impedance: 4.2 ohms @ 9.7 kHz
  • Nominal -6dB Beamwidth: 90° H x 40° V
  • Axial Q/DI: 18.1/12.6, 1.6 kHz to 10 kHz
  • Crossover Frequency: 2 kHz
  • Recommended Signal Processing: 90 Hz high pass filter
  • Drivers: LF (1) 12" Ferrofluid-cooled, HF (1) 1"exit, titanium free, Ferrofluid-cooled
  • Driver Protection: DYNA-TECH
  • Input Connection: 12 foot SJOW #16 gauge
  • Controls: None
  • Enclosure: Rotomolded HDPE, light grey
  • Mounting/Rigging Provisions: (5) 3/8-16 rigging points
  • Grille: 3-layer WeatherStop (Perforated steel, foam, stainless steel mesh)
  • Required Accessories: 24 dB/Oct high pass filter
  • Supplied Accessories: (1) Stainless Steel (304) yoke bracket; (1) Aiming strap
  • Optional Accessories: Pole mount system
  • Dimensions (HxWxD): 16" x 16" x 16"
  • Weight: 35 lbs
  • Shipping Weight: 40 lbs
