Product Overview

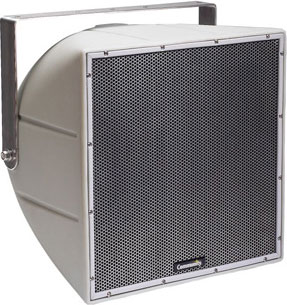

Community's R.5-66TZ two-way, full-range loudspeaker system is engineered to provide quality full-range sound projection in a variety of outdoor and indoor applications. Its wide range, smooth frequency response and high efficiency ensure both high fidelity music reproduction and superb projection of clear intelligible speech with very low distortion. An input autoformer with switchable taps provides impedance matching to 70V or 100V lines. Five-year limited product warranty; fifteen-year enclosure warranty.
Community R.5-66TZ Applications:
- Fill speaker for stadia, athletic fields, arenas and race tracks
- Convention centers
- Outdoor background music/paging systems
- Theme and amusement parks
- Fairgrounds, rodeos, air shows
- Malls, cruise ships, skating rinks
- Swimming pools
- Portable sound systems
Community R.5-66TZ Features:
- Rotomolded, UV enclosure
- Pattern control down to 630Hz
- High efficiency
- Integral mounting points
- High power passive crossover
- DYNA-TECH active protection circuitry
- Multi-tap 200W autoformer for 70V and 100V inputs
- Five-year product warranty/Fifteen-year enclosure warranty
Community R.5-66TZ Specifications:
- Loudspeaker Type: 2-way, horn loaded coaxial, weather-resistant
- Operating Range:
- 85Hz to 16kHz
- 125Hz to 10kHz (+/-4dB)
- Max Input Ratings: 200W, 70V/100V
- Recommended Power Amplifier:
- 25W to 200W @ 70V
- 50W to 200W @ 100V
- Sensitivity (1W/1m):
- 102 dB SPL (125 Hz to 10 kHz 1/3 octave bands)
- 102 dB SPL (250 Hz to 4 kHz speech range)
- Maximum Output on 200W Tap: 125 dB SPL
- 200W Nominal Impedance: 25 ohms
- 200W Minimum Impedance: 16.4 ohms @ 9.3 kHz
- Nominal -6dB Beamwidth:
- 60° H (+3°/-8°, 1.6 kHz to 12.5 kHz)
- 60° V(+20°/-16°, 1.6 kHz to 12.5 kHz)
- Axial Q/DI: 21.4/13.3, 1.6kHz to 12.5kHz
- Crossover Frequency: 2kHz
- Recommended Signal Processing: 90Hz high pass filter
- Drivers:
- LF: (1) 12" Ferrofluid-cooled
- HF: (1) 1" exit, titanium free, Ferrofluid-cooled
- Driver Protection: DYNA-TECH
- Input Connection: 12 foot SJOW #16 gauge
- Controls:
- 4 position autoformer TAP select switch
- 70V switchabletaps @ 200W, 100W, 50W, 25W
- 100V switchable taps @ 200W, 100W, 50W
- Enclosure: Rotomolded HDPE, light grey
- Mounting/Rigging Provisions: (5) 3/8-16 rigging points
- Grille: 3-layer WeatherStop (Perforated steel, foam, stainless steel mesh)
- Required Accessories: 24 dB/Oct high pass filter
- Supplied Accessories:
- (1) Stainless steel (304) yoke bracket
- (1)Aiming strap
- Optional Accessories: Pole mount (ATM Flyware or Polar Focus)
- Dimensions: 16" H x 16" W x 15.94" D
- Weight: 37 lbs
- Shipping Weight: 42 lbs
