12" 200W 2-Way Horn Loaded Weather-Resistant Full-Range Loudspeaker

OUR PART #:  R.5-66Z

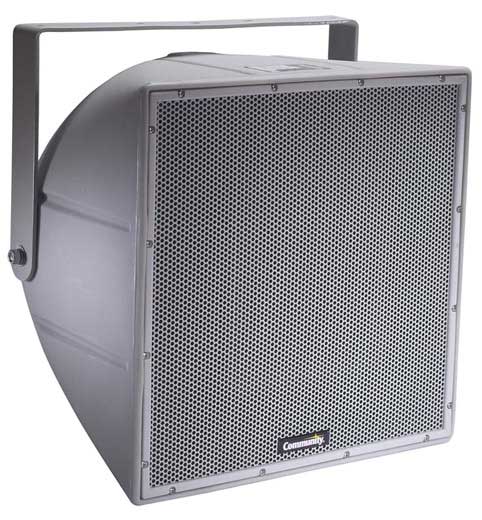

Community's R.5-66Z two-way, full-range loudspeaker system is engineered to provide quality full-range sound projection in a variety of outdoor and indoor applications.
Learn More
Our Price: $908.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Community R.5-66Z
Qty:
In Stock

Similar Products

Community's R.5-66Z two-way, full-range loudspeaker system is engineered to provide quality full-range sound projection in a variety of outdoor and indoor applications. Its wide range, smooth frequency reponse and high efficiency ensure both high fidelity music reproduction and superb projection of clear intelligible speech with very low distortion. Five-year limited product warranty; fifteen-year enclosure warranty.

Community R.5-66Z Applications:

  • Convention centers
  • Fill speaker for stadia, athletic fields, arenas and race tracks
  • Outdoor background music/paging systems
  • Theme and amusement parks
  • Fairgrounds and rodeos
  • Malls, cruise ships, skating rinks
  • Swimming pools
  • Portable sound systems

Community R.5-66Z Features:

  • 60 degree H x 60 degree V dispersion
  • Weather-resistant, rotomolded UV enclosure
  • Weather-treated drivers and crossovers
  • Corrosion-resistant zinc-rich epoxy dual-layer powder coated steel grille and yoke
  • Pattern control down to 630Hz
  • High efficiency
  • Integral mounting points
  • High power passive crossover
  • DYNA-TECH protection circuitry
  • Five-year product warranty/Fifteen-year enclosure warranty

Community R.5-66Z Specifications:

  • Loudspeaker Type: 2-way, horn loaded, coaxial, weather-resistant
  • Operating Range: 85Hz to 16kHz
    125Hz to 10kHz (+/-4dB)
  • Max Input Ratings: 200W continuous, 500W program
    40 volts RMS, 89 volts momentary peak
  • Recommended Power Amplifier: 420W to 600W @ 8 ohms
  • Sensitivity (1W/1m):
    103dB SPL (125Hz to 10kHz 1/3 octavebands)
    103dB SPL (250Hz to 4kHz speech range)
  • Maximum Output: 126 dB SPL / 133 dB SPL (peak)
  • Nominal Impedance: 8 ohms
  • Minimum Impedance: 4.1 ohms @ 9.6kHz
  • Nominal -6dB Beamwidth: 60°H x 60°V
  • Axial Q/DI: 21.4/13.3, 1.6kHz to 12.5kHz
  • Crossover Frequency: 2kHz
  • Recommended Signal Processing: 90Hz high pass filter
  • Drivers:
    LF (1) 12" cast frame, Cool-Coil
    HF (1) 1" exit, titaniumfree, Ferrofluid-cooled
  • Driver Protection: DYNA-TECH protection circuitry
  • Input Connection: 12 foot SJOW #16 gauge
  • Controls: None
  • Enclosure: Rotomolded LLDPE, light grey
  • Enclosure Hardware: None
  • Mounting/Rigging Provisions: (5) 3/8-16 rigging points
  • Grille: 3-layer WeatherStop, light grey (Zinc-rich epoxy dual-layer powder coated perforated steel grille, foam, woven poly mesh)
  • Environmental Performance: IEC529 IP55W rating with a minimum 5-degree downward aiming angle
  • Required Accessories: 24 dB/oct high pass filter
  • Supplied Accessories:
    (1) Yoke bracket, light grey
    (1) Aiming strap
  • Optional Accessories: PMB Series pole mount brackets
  • Dimensions: 16" H x 16" W x 15.94" D
  • Weight: 35 lbs
  • Shipping Weight: 40 lbs
