Product Overview
The improved design of the Sierra Pro XL 1616V5S allows for higher bandwidth routing with very low crosstalk. The frame is a compact 6RU (10.5") and allows control of multiple signal types including composite, S-Video, YUV, RGBS, RGBHV, Y/C, and analog HD. This Sierra Pro XL system accommodates balanced or un-balanced audio, AFV, or Breakaway split routing allowing for RGB muting for enhanced performance with projectors and displays. IP control, RS-232 serial control and a front local control panel are standard. Remote control options are available.
Features:
- 450MHz bandwidth at -3dB with very low crosstalk
- Up to and exceeding 1600 x 1200 @ 75Hz resolution capability
- Matrix Mapping Universal Breakaway™ Switching for multi-format use
- Adjustable audio gain and attenuation with no zipper effect
- Video Follow Sync™ Switching design eliminates glitches during switching
- Room grouping of inputs for flexible configuration in multi-room applications
- Plug-in boards for flexible frame signal configuration by the factory
- Color coded rear panel
- Front panel control Interface with LCD display
- IP and RS-232 control
- Full range of remote control panels available
- Redundant power supplies available
Specifications:
- Wideband Video
- Bandwidth: 450MHz @ -3dB
- Video Gain: Unity
- Crosstalk: -80dB @ 1MHz, 47dB @ 100MHz, -30dB @ 150MHz
- Switching Speed: deterministic
- Input
- Video Level: 0.2V to 5V p-p
- Impedance: 75 Ohm
- Return Loss: < -30dB @ 5MHz
- Connector Type: BNC
- Output
- Video Level: 0.2V to 5V p-p
- Impedance: 75 Ohm
- Return Loss: < -30dB @ 5MHz
- Connector Type: BNC
- Analog Stereo Audio (on certain units)
- Voltage Gain: Unity, +/- 0.75dB max (+/- 0.25 typical)
- Input Adjust Range: +20.5dB to -8dB
- Output Adjust Range: +15dB to -59.5dB and fully off (MUTE)
- Frequency Response: 20Hz to 20KHz +/- 0.5dB (typical -3dB @ 120KHz) (unity gain)
- Dynamic Range: 96 dB (20-20KHz unweighted) (unity gain)
- Crosstalk (all inputs hostile): < -80dB @ 1KHz (unity gain), < -60dB @ 10KHz (unity gain)
- THD (20 to 20 KHz): < 0.025% (20Hz - 20Khz @ +4dBu) (unity gain)
- IM (20 to 20 KHz): < 0.025 SMPTE-DIN @ +4dBu (unity gain), < 0.01% CCIF @ +16dBu (unity gain)
- Input
- Maximum Source Level: +24dBu
- Impedance: > 20K
- Connector Type: 5 pin terminal block for balanced or unbalanced operation
- Output
- Maximum Source Level: +24dBu balanced, +18dBu unbalanced
- Impedance: < 50 Ohm
- Connector Type: 5 pin terminal block for balanced or unbalanced operation
- Control
- Serial: General Purpose 9 pin-D, each switchable RS-232 or RS-422, 2 on 32x32 models, 1 on all others, 9600, 38400, 115200 baud
- Serial Protocols: SVS host, simple Kramer, and select others
- Ethernet: 10/100 Base-T, full duplex, RJ-45 connector
- Ethernet Protocols: ARP, ICMP, TCP/IP, Telnet, HTTP
- Web Server: For configuration and control
- Redundant Control Processor: N/A
- Control Panels: Supports SCP programmable control panels, XY & single bus control panels
- Dimensions
- 8x & 12x: 19”w x 5.25”h x 13”d
- 16x: 19”w x 10.5”h x 19”d
- 32x video only: 19”w x 15.75”h x 19”d
- 32x audio only: 19”w x 5.25”h x 19”d
- Mounts in standard 19” rack
- Depth measurements do not include front panel hardware or rear cabling
- General
- 8x & 12x: 3RU (Rack Unit Size/Frame)
- 16x: 6RU (Rack Unit Size/Frame)
- 32x video only: 9RU (Rack Unit Size/Frame)
- 32x audio only: 3RU (Rack Unit Size/Frame)
- Power: 90 VAC->240 VAC 50/60 HZ (< 150 Watts) auto-detecting
- Redundant Power Supply: Optional in Series 16, standard in Series 32
- Storage Temperature: -40 to +150 degrees F
- Operating Temperature: 30 degrees to 100 degrees F ambient
- Humidity: 10% to 90 % non-condensing
Note:

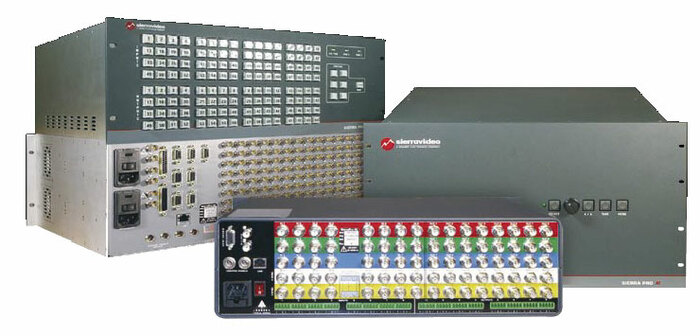

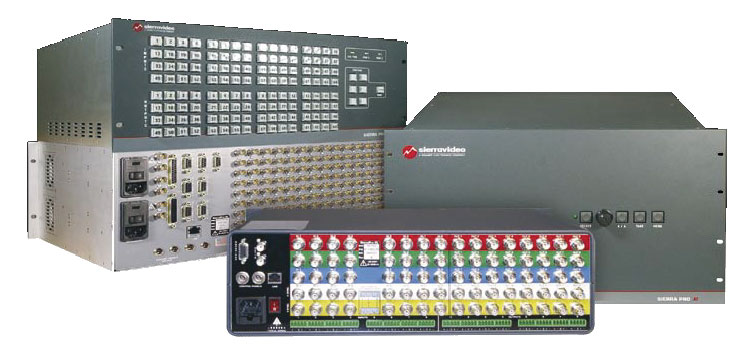

The picture is for illustrative purposed only and may not be the exact representation of this model.
