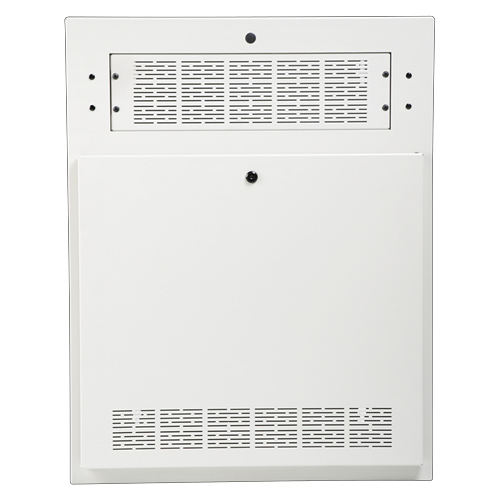

Atlas IED AWR2W Amplifier Wall Cabinet in White

Convenient access and lock-in security highlights Atlas-Sound’s ­re-designed AWR2W – 2RU tilt-out wall cabinets for 19" equipment. These re-designed welded models can be surface or recessed mounted (trim ring included) and include a 3RU panel ­opening above the main bay for connector panels or power distribution with a usable depth of 4". These cabinets are perfect for mounting remote amplifiers and control ­equipment.

The series features a 16-ga. CRS formed door frame with a 16-ga. CRS locking tilt-out door which closes against rack face plate. The surface mounting door is attached to the frame internally with 2 pin style hinges to prevent tampering.

Doors can be opened to two positions—tilt-out for operation and by releasing side catches, the door will open to approximately 90° for ­equipment installation and maintenance. Units are furnished with two steel safety catch cables which suspend and hold doors at 90°.

Front panels have 45-degree mitered edges to present a clean flush appearance. Back box is 16-ga. CRS equipped with six concentric ­knockouts of 1/2" and 3/4". AWR Series is shipped complete and ready for installation. Panel mounting holes accept 10-32 hardware.

The Useable depth is 20" (50.8cm) Top RU, 17.25" (43.81cm) Bottom RU.

Atlas Sound AWR2W Features:

• Surface or Recessed Mounting Capability
• The AWR series includes a highly adaptable 3RU front access panel which is great for "user accessible" electronics.
• The AWR series provides safety, security, and protection for rack mount gear in commercial applications.
• Two-Position, Tilt-Out 16-ga. CRS Door

Atlas Sound AWR2W Specifications:

• Dimensions: 34" H x 27" W x 4-3/4" D (86.36 x 68.58 x 12.192 cm)
• Usable Depth: 17-1/4" (43.815 cm)
• Shipping Weight: 54 lbs (24.49 kgs)
• Rack Spaces: 2
