Kramer TP-112HD 1:2 Computer Graphics Video and HDTV over Twisted Pair Transmitter

OUR PART #: TP-112HD MFR #: 90-70167090

Copied to clipboard

The Kramer TP-112HD is a twisted pair transmitter for computer graphics video and HDTV signals. ...Read more

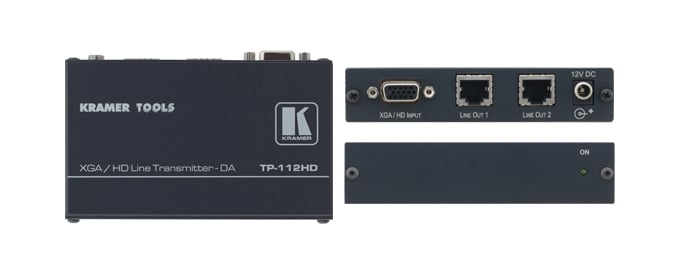

Kramer TP-112HD 1:2 Computer Graphics Video And HDTV Over Twisted Pair Transmitter Image 1
Kramer TP-112HD 1:2 Computer Graphics Video And HDTV Over Twisted Pair Transmitter Image 2
Kramer TP-112HD 1:2 Computer Graphics Video And HDTV Over Twisted Pair Transmitter
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Kramer TP-112HD is a twisted pair transmitter for computer graphics video and HDTV signals. It converts a computer graphics video or HDTV signal on a 15-Pin HD connector to two identical twisted pair signals.

Paired Receivers: PT-120, TP-105, TP-120, VP-5R

Features

  • High Bandwidth -150MHz (-3db)
  • HDTV Compatible
  • Power Connect System - Only one unit in a system, either the transmitter or the receiver needs to be connected to a power source. All the system units must have the Power Connect system to use this feature.
  • Long System Range - Up to 100 meters (300). Greater distances possible depending on signal resolution and cable.
  • Cable Type - Uses UTP (unshielded twisted pair) cable such as CAT5.
  • Horizontal and Vertical Sync Polarity Selection
  • Compact Size - Part of the Kramer TOOLS family of compact, high qualityand cost effective solutions

Specifications

  • Input: 1 XGA / HD on an HD15F connector
  • Outputs: 2 RJ 45 OUT connectors
  • Max. Output Level: 1.7Vpp
  • Hightest Resolution: UXGA, 1080P
  • Diff. Gain: 4%
  • Diff. Phase: 0.3°
  • K-Factor: 0.1%
  • S/N Ratio: 65dB
  • Contols: 2 switches for sync inversion
  • Coupling: AC
  • Power Source: 12 VDC 522mA
  • Dimensions (WxDxH): 4.7" x 2.8" x 1.08" (12cm x 7.15cm x 2.76cm)
  • Weight: 0.3 kg. (0.67 lbs.) approx.
  • Accessories: Power supply
