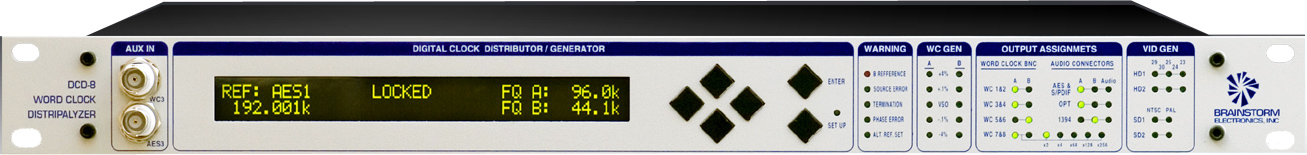

Brainstorm Electronics DCD-8
Word Clock Distripalyzer

OUR PART #:  DCD8

With the proliferation of digital equipment, it is becoming increasingly difficult to keep everything synchronized and locked.
Learn More
Our Price: $1,525.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Brainstorm Electronics DCD-8
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

With the proliferation of digital equipment, it is becoming increasingly difficult to keep everything synchronized and locked. Carrying on in the tradition of the Brainstorm Distripalyzer, the DCD-8, with 10 inputs and 17 outputs, is the perfect solution! Offering not only exceptional stability but also remarkable flexibility, the DCD-8 is ideal for most situations, whether you have a small sound studio or a large post-production facility with NTSC, PAL or HD systems. Clock generating, distributing, clean up, analyzing, format converting, it does it all for a very affordable price.

Inputs available are WC, GPS, AES, S/PDIF ADAT and video. Any of those external sources can be used as a reference. Or set the DCD-8 to "internal" and use it as a master clock generator. FireWire is also included, which some manufacturers only offer as a costly option. So, if you need to reference your Mac or PC to the DCD-8 via FireWire, you're ready to go.

The DCD-8 will feel right at home in a video studio. The base model accepts NTSC, PAL, and even HD tri-level sync. And the optional video generator VSG-4 can generate many different formats of HD tri-level sync, as well as NTSC and PAL.

For Gearboxing, the DCD-8’s exceptional flexibility enables you to generate any rate from any source. The DCD-8 can also generate multiple rates simultaneously: 3 digital audio rates (up to 192K) and 4 video sync rates (2 SD and 2 HD). All locked to the same reference.

While all this is going on, the DCD-8 analyzer keeps you confident everything is running smoothly and helps you identify problems when necessary (phase, termination,frequency). As a bonus, the DCD-8 even does format conversion between the different audio I/Os.

Brainstorm Electronics DCD-8 Features:

  • Ultra Low Jitter Word Clock Generator
  • Extracts a clean Word Clock from Audio (AES, S/PDIF, ADAT or FireWire) orVideo (Incl. HD)
  • Generates multiple rates simultaneously
  • Word Clock Distributor
  • World Clock Analyzer
  • Audio Router/ Format converter
  • Video Sync Generator (optional) VSG-4
  • Redundancy: When locked to an external signal, in the event of a dropout or a source failure, the DCD-8 will switch automatically to an alternate source; if no alternate source has been selected, the DCD-8 will switch to its internal crystal
  • Expansion: Multiple DCD-8s can be linked together via cable, while maintaining phase

Brainstorm Electronics DCD-8 Specifications:

  • Inputs:
    • 3x Word Clock BNC (2 on rear + 1 on front panel) - 32KHz to 192KHz
    • 3x AES-EBU (2 XLR on rear + 1 BNC on front panel) - 32KHz to 192KHz
    • 1x S/PDIF on RCA- 44.1KHz to 192KHz
    • 1x Optical:
      • S/PDIF 44.1KHz to 192KHz
      • ADAT (SMUX) 44.1KHz to 192KHz
    • 1x FireWire 44.1KHz to 192KHz
    • 1x Video: NTSC / PAL or HD Tri-Level Sync
  • Outputs:
    • 8x Word Clock BNC -
    • 2x AES-EBU
    • 1x S/PDIF on RCA
    • 1x Optical:
      • S/PDIF
      • ADAT
    • 1x FireWire
  • Optional Video Outputs:
    • 2x SD: NTSC and PAL
    • 2x HD: 720 (SMPTE 296M) & 1080 (SMPTE 274M, RP211, 295M)
  • WC Generator:  Includes 2 separate generators,A&B
    • Each generator can generate a separate rate from 32KHz to 192KHz
    • Pull up/down: .1% and 4%
    • VSO
  • Analyzer:
    • Input frequency counter
    • Phase
    • Termination
  • Power:  External, switching power supply
  • Input voltage: 90 VAC - 264VAC
  • Input frequency: 47 Hz - 63 Hz
  • Output: +12VDC, 2A
  • Dimensions:  19" W x 8" D x 1.75" (1 RU) H
