Speco Technologies VL565PIR
Camera CCTV Non-op PIR house

OUR PART #  VL565PIR

Our Price: $288.00
Usually ships in 7-14 business days.
Need it sooner? Call us!

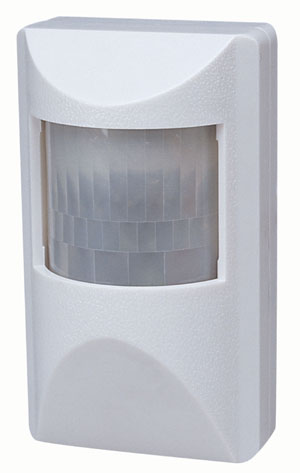

This 1/3" color CCD camera is encased in a white non-working PIR housing. It has a 1.0 lux with 380 line resolution. It features a 3.6mm wide angle pinhole lens and built-in electronic shutter. A 12V DC power supply is included. A B/W version of this camera can be found under model number VL-265PIR.

Specifications:

  • Resolution: 380 lines
  • Image Device: ¼" color CCD image sensor
  • Lens: 3.6mm pinhole lens
  • Minimum Illumination: 1.0 lux
  • Number of Pixels: 512 horizontal x 492 vertical
  • Output: Video- RCA w/ BNC adapter, Power- DC Jack
  • Power Consumption: 210 mA
  • Electronic Shutter: auto 1/60 - 1/100,000 seconds
  • Scanning Frequency: horizontal 15.75 kHz vertical 60 Hz
  • Scanning System: NTSC Color TV System
  • Video Output Level: 1.0 Vp-p.75 ohm
  • Video S/N Ratio: Greater than 46 dB
  • Humidity: Within 95 % RH
  • Operating Temperature: 14º F - 122º F
  • Housing: non-working, white, PIR housing
  • Dimensions: 2"L x 2.75"W x 4.75"H
  • Power Supply: regulated 12V DC power supply included (UL and CSA listed)
