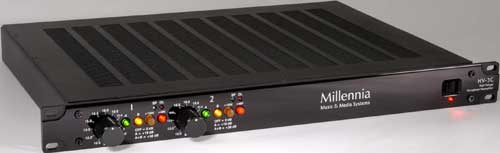

Millennia Media Inc HV3C
Stereo Mic Preamp

OUR PART #:  HV3C

Combining a precisely matched octet of discrete bipolar transistors with a laser trimmed DC coupled FET-based output driver stage...
Learn More
Our Price: $1,852.99
List Price: $2,059.00
You save 10%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Millennia Media Inc HV3C
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Combining a precisely matched octet of discrete bipolar transistors with a laser trimmed DC coupled FET-based output driver stage, the HV-3C (tm) is an entirely "double balanced," extremely wide dynamic range stereo microphone preamplifier intended for demanding acoustic recording. Unlike "textbook" mic preamplifiers, the HV-3C signal path never unbalances or rebalances the original signal — thus maintaining a high degree of signal integrity.

Unlike preamps using vacuum tubes, IC function modules and audio transformers (all of which can lend their own audio coloration) the Millennia HV-3C is precisely optimized towards capturing the subtlest detail of music and ambience. With +23 dBu native input headroom, the HV-3C requires no input pads, attenuators, or switch points as found on common textbook preamp designs - thus avoiding yet another source of sonic degradation. Moreover, with its +32 dBu output headroom, ultra-high dynamic stability and linearity is assured. NOTE: The HV-3C is a recently-updated version of the HV-3B two channel mic preamp, with improved mechanical design and cosmetics, and standard 36 step gain control. HV-3C uses the identical preamps as found in the HV-3D 8-ch units.

HV-3C signal path from input through output is entirely balanced with a minimum amplifier topology. Uncompromising circuit design with meticulous selection and hand-matching of critical components assures consistently transparent audio performance at all dynamic excursions and frequency extensions.

Features

  • High speed transformerless design
  • 23dB Input & 32dB Output headroom
  • No pads (attenuators) required
  • Entirely balanced audio path
  • Laser trimmed FET-based output
  • THD+N less than 5 PPM (.0005%)
  • Matched discrete transistor octet front-end
  • Optional Bruel & Kjaer (DPA) +130V mic inputs
  • Optional 24 bit, 192 kHz "POW-R" A/D converters
  • Optional "DC Inputs" - Ideal for ribbon mics
  • Precision componentry throughout
  • Gold audio connectors & switches
  • Standard 36-step gain control (1.5 dB per step)
  • Stereo gain matched to .08 dB
  • OFC audio wiring, silver teflon power wiring
  • Ultra-clean toroid power supply
  • Welded 16 gauge steel rack chassis
  • Unsurpassed ambience retrieval
  • Effortless, lifelike musical performance at ALL dynamic levels

Specifications

  • Minimum Gain: 8.5 dB
  • Maximum Gain (1.5 dB per step, 36 steps): 60.5 dB (up to 78 dB on request)
  • Frequency Response (+0/-3dB): sub 4 Hz to beyond 300 kHz
  • Frequency Response, Stereo Deviation: <.04 dB
  • Noise @ 60 dB gain, 10Hz-30kHz, Inputs common: -133 dB EIN
  • Noise @ 60 dB gain, 10Hz-30kHz, 50 ohm source: -130 dB EIN
  • Noise @ 60 dB gain, 10Hz-30kHz, 150 ohm source: -128 dB EIN
  • Total Harmonic Distortion + Noise, 35 dB gain, 10 Hz-20kHz bandwidth, +27 dBu out: <.001%, Typ. <.0005% (<5 PPM)
  • Intermodulation Distortion (50Hz & 7kHz) 35 dB gain, +27 dBu out: <.0009%
  • Phase Response 35dB gain, 50Hz-20kHz bandwidth, +27 dBu out: <2 degrees deviation
  • Phase Response, Stereo Deviation 35dB gain, 20Hz-40kHz bandwidth, +27 dBu out: <1/2 degree deviation
  • Common Mode Rejection Ratio 35dB gain, 10Hz-20kHz bandwidth, 100 mV C.M.: >65dB, Typ >85dB
  • Slew Rate 35dB gain, +27dBu out: >25 Volts per microsecond
  • Maximum Input Level 20Hz-40kHz: +23 dBu
  • Maximum Output Level 20Hz-40kHz: +32 dBu
  • Interchannel Crosstalk 35 dB gain, 1kHz, +27 dBu all outputs: Better than -120dB (>20 bits)
  • Phantom Input Impedance @ 20Hz: 6,700 ohms
  • Phantom Input Impedance @ 20kHz: 6,800 ohms
  • Output Impedance: 24.3 ohms (x2)
  • B&K (DPA) Mic Powering: +130 VDC, max, direct (non-phantom) powered
  • Phantom Powering: +48 VDC, +/-2VDC
  • Power Consumption, Max: 45 Watts, maximum
  • Power Requirements: 100 to 240 VAC, 50/60 Hz
  • Dimensions (W x D x H): 19" x 12" x 3.5"
130V DPA Mic Input Option
Millennia Media Inc BK 130V DPA Mic Input Option
130V mic input option, adds 4-pin XLR B&K (DPA mics 4003, 4004, 4012 and 4016) high voltage inputs to rear panel, in addition to standard 3-pin phantom XLR input (per input).  Works with Millenia HV-C3, HV-3D, HV-3R,and  M-2b ...
294.45 300.00
Usually ships in 7-14 business days.
Need it sooner? Call us!
DC Input Option (for Preamps)
Millennia Media Inc DC DC Input Option (for Preamps)
DC input option. Available on all  microphone preamps. Adds direct DC-coupled input for dynamic & ribbon mics. Improves sonic performance with all dynamic microphones.  3-pin phantom XLR input comes standard with mic preamps ...
95.19 100.00 5
Usually ships in 7-14 business days.
Need it sooner? Call us!
