Millennia Media Inc STT1
Origin Single Recording Channel System

OUR PART #:  STT1

Absolute Accuracy, Plus a Rich Tonal Palette With over 130 signal topologies - everything from minimalist...
Learn More
Our Price: $3,067.99
List Price: $3,409.00
You save 10%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

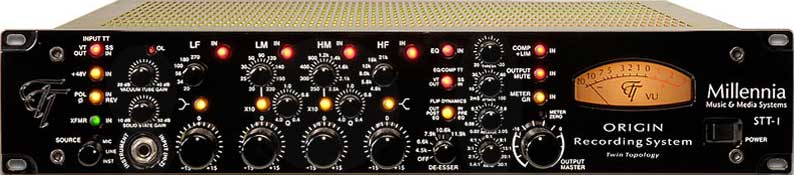

Millennia Media Inc STT1
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Absolute Accuracy, Plus a Rich Tonal Palette
With over 130 signal topologies - everything from minimalist, pure Class A gain to complex "larger than life" processor chains - STT-1 could be the only front end you'll ever need. For the producer/engineer/musician who needs fast, easy access to a vastly expanded sonic palette with uncompromised signal integrity, there's no better tool. Easily and quickly patch vacuum tube preamplifiers or processors with discrete solid state Class-A circuits. Use transformer or transformerless coupling through wide-ranging inputs and outputs. The choice - and the sound - is entirely yours.

Authentic Sonic Signatures
All Origin signal processing circuits are identical to the acclaimed stand-alone Millennia products used by world-class recording and mastering engineers. This kind of purity means you can adjust dynamics or EQ without compromising the integrity of the source. The track will sit exactly where you want it in the mix, yet the processing is so clear it seems part of the original.

Input Transformer Option
Millennia circuits are inherently transformerless: it's the truest path to the accuracy and realism we seek. But on aggressive sources such as drums and electric bass, we're also fans of transformer-coupled inputs such as Rupert Neve's original Class-A, all-discrete designs from the 1960s. Our custom MIT-01 transformer provides its own "fat" euphonic coloration, adding pleasing distortion at high dynamic levels and wide frequency excursions. It may not be lifelike, but the larger than life sound can really cut through the mix.

Digital Needs Warmth, Demands Total Clarity
Microphone preamplifiers magnify the input as much as 1000:1. There's no "Undo" after this point. Coloration or distortion become part of the signal. Lost information can never be recovered. Data compression algorithms (MPG, AC3, DTS etc.) are unable to distinguish signal from noise, so preserving the clarity and integrity of the signal through the recording and production process is critical to communicating the artist's intention and individuality. Millennia's unique designs avoid circuit-induced artifacts, giving you total control. Amplify the original sonic information with an absolute minimum of alteration, or apply tonal colors so authentic they seem to become part of the source itself.

You Can Pay More, You Can't Spend Less
Initial purchase price is never a design target at Millennia Media. Millennia strives to maximize return on investment and minimize lifetime cost. Designed for the world's most critical recordings, STT-1 is the choice of top audio professionals worldwide. This is a toolbox you can build a career around, one that will remain essential no matter how far your sonic explorations take you. Acquiring an Origin is a step off the upgrade treadmill: a step that will ultimately save you much more than your initial investment.

Features

  • Twin Mic Preamps — M-2B vacuum tube or HV-3 discrete solid state
  • Twin NSEQ-2 Mastering-Grade Parametric Eqs — vacuum tube or discrete solid state
  • Three Opto Compressor/Limiter Paths — TCL vacuum tube, discrete solid state, passive
  • Twin Opto De-Esser Paths — vacuum tube or discrete solid state
  • Vacuum tube or discrete solid state line level paths
  • Input coupling with or without MIT-01 audio transformer
  • 1/4” vacuum tube DI input — route via tube or solid state gain path
  • Effortless, lifelike musical performance at all levels
  • Musically rich vacuum tubes available
  • Gold audio connectors, tube sockets, relays and switches
  • 3/8“ thick radius extruded aluminum face plate
  • Durable black mirror-gloss anodized finish
  • Mil spec 16 gauge cold-rolled steel chassis
  • Ultra-clean toroid power supply: internal sub-chassis
  • Hand machined aluminum knobs, illuminated IT&T pushbuttons
  • Mogami Neglex OFC audio wiring
  • Silver Teflon power wiring
  • True audio VU meter for output level or dynamics gain reduction

Specifications

  • Twin Topology Mic Preamplifier Selection: Switchable, Vacuum Tubes or Solid-State
  • Twin Topology EQ & Compressor: Switchable, Vacuum Tubes or Solid-State
  • Twin Topology Input Coupling: Switchable, Transformer or Transformerless
  • Maximum Output Level (Balanced): +32dBu
  • Frequency Response: sub 5Hz to beyond 300kHz (+0/-3dB S/S)
  • Equivalent Input Noise: -131 dBu (SS, Common Source, Direct Out)
  • THD+Noise (20Hz-22kHz, S/S): <.05%, typ <.003%
  • Common Mode Rejection Ratio (S/S): >40dB, typ >70dB @ 60Hz
  • Input Impedance (Mic): 6,200 ohms
  • Input Impedance (Line): 2,200 ohms (x2)
  • Input Impedance (DI - instrument): >1 megohm
  • Output Impedance (Balanced): 24.3 ohms (x2)
  • Max EQ Boost/Cut Range (21 step detented): +/-15dB
  • EQ Frequencies, Low Range Switch (Centers - Peak/Shelf Selectable): 20, 34, 56, 100, 180, 270
  • EQ Frequencies, Low Mid Sweep: 20Hz-220Hz or 200Hz-2.2kHz; 10X range switch selectable
  • EQ Frequencies, Hi Mid Sweep: 250Hz-2.5kHz or 2.5kHz-25kHz; 10X range switch selectable
  • EQ Frequencies, High Range Switch (Centers - Peak/Shelf Selectable): 4.8k, 5.8k, 8.0k, 10k, 16k, 21k
  • "Q" Range: Q = 0.4 to 4.0 Adjustable on middle ranges; Q = 1.0 Fixed on low & high ranges
  • Threshold Range: Infinite to +20dBu
  • Attack Range: 2 ms to 100 ms
  • Release Range: 80 ms to 3.0 s
  • Compression Ratio Range: minimum 1.4:1, maximum 30:1
  • De-Essing Frequency Switch: OFF, 4.9k, 6.8k, 8.2k, 10.7k, 12.0k
  • Power Consumption: 50 watts maximum
  • Power Requirements: Selectable: 100-120, 200-240V AC, 50/60Hz
  • Dimensions (W x H x D): 19" x 3.5" x 15.5"
  • Shipping Weight: 25 lbs
