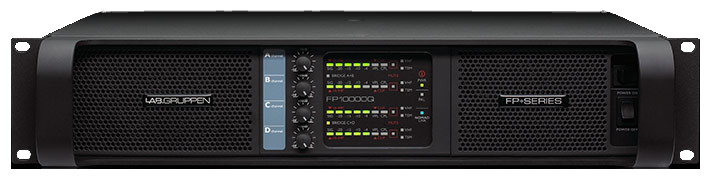

Lab Gruppen FP10000Q/SP 4 X 1300-Watt Power Amp Image 1
Lab Gruppen FP10000Q/SP 4 X 1300-Watt Power Amp
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Lab.Gruppen FP 10000Q is the flagship 4-channel model in the FP+ Series. At the core of the FP 10000Q’s performance is a breakthrough advance in Lab.gruppen’s patented Class TD output stage, an amplifier topology that approaches the exceptional efficiency of class D while retaining the sonic purity of proven class AB designs. Further contributing to the remarkable efficiency of the FP 10000Q is a Regulated Switch Mode Power Supply (R.SMPS), which gives the added benefit of stabilizing rail voltages to the output even with wide fluctuations of mains voltage. A highly refined and updated circuit layout optimizes the interaction of R.SMPS and Class TD to produce the extraordinary power density of the FP 10000Q.

The FP 10000Q is shipped with a NomadLink® network interface as standard. In conjunction with DeviceControl PC software, NomadLink® allows monitoring of all key amplifier parameters and remote control of power on/off, channel mutes, and channel solo functions. (NomadLink® requires the separate NLB 60E network bridge.)

Features:

  • Output Power, Per Channel
    • 2 ohms: 2500W
    • 4 ohms: 2100W
    • 8 ohms: 1300W
    • 16 ohms: 660W
  • Output Power, Bridged
    • 4 ohms: 5000W
    • 8 ohms: 4200W
    • 16 ohms: 2600W
