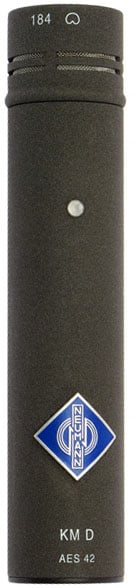

Neumann KM 184 D 44 AES Starter Set
44.1 kHz Preset Cardioid Digital Microphone in Nextel Black Finish with AES/EBU Connection Kit & Power Supply

OUR PART #:  KM184D-44AES-SET

Pure Neumann sound in the digital domain, for use with AES/EBU, AES 42 or S/PDIF.  The signal is converted directly at the capsule.
Learn More
Our Price: $1,649.95

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neumann KM 184 D 44 AES Starter Set
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Pure Neumann sound in the digital domain, for use with AES/EBU, AES 42 or S/PDIF.  The signal is converted directly at the capsule.  Difficult questions concerning the optimal preamp and A/D converter for a Neumann microphone are thus a thing of the past.

Kit Includes:

  • KM D nx digital output stage - 44.1 kHz
  • KK 184 cardioid passive capsule
  • WNS 100 windshield
  • SG 21 BK microphone clamp
  • Wood box
  • AES/EBU connection kit (see bottom of description for more info on thiskit)

Neumann's modular KM D miniature microphone system is a further development of the successful KM 100 series.  The passive capsule design can be combined modularly with an analog (KM A) or digital (KM D) output stage in accordance with the AES 42 standard. The considerably smaller microphone capsules (available in 8 directional patterns - cardioid included, all sold separately) and an extensive program of accessories permit excellent adaptation of the microphone system to a wide range of applications.

Through the use of the most up-to-date electronic components the system offers many electroacoustic and operational advantages, such as lower self-noise, a wider dynamic range and very high immunity to electromagnetic interference.  The acoustics of the capsules were taken from the proven KM 100 system.

The KM D digital output stage converts the signal from the capsule directly into a digital signal.  The result is an AES/EBU signal with 24 bits and a large dynamic range.  The integrated digital signal processor (DSP) permits remote control of the microphones, including the digital gain, pre-attenuation (6 dB, 12 dB or 18 dB) and low-cut filter (0 Hz, 40 Hz, 80 Hz or 160 Hz).  An integrated peak limiter and compressor/limiter with additional de-esser function prevents any overloading of the audio signal.

The modular solution permits the microphone capsule to be separated from the output stage by a distance of up to 100 m.  The LC 4 microphone cable with a length of 5 or 10 meters is available as a standard solution (sold separately).  Alternatively, capsule extensions of different lengths, swivel joints and stand mounts, etc. (all sold separately), can be used for a flexible system setup.

Features:

  • Set includes windshield and clamp
  • The satisfaction of recording the uncolored original, with no"bottlenecks" between the capsule and the recording system.
  • Anti-clipping processing ensures handling safety, and reduces stress.

Specifications:

  • Acoustical operating principle: Pressure gradient transducer
  • Directional pattern: Cardioid
  • Frequency range: 20 Hz - 20 kHz
  • Sensitivity at 1 kHz into 1 kohm: -39 dBFS
  • Equivalent noise level, CCIR**: 24 dB
  • Equivalent noise level, A-weighted**: 13 dB-A
  • Signal to noise ratio* CCIR**: 70 dB
  • Signal to noise ratio* A-weighted:** 81 dB
    *re 94 dBSPL
    **Accordingto IEC 60268-1; CCIR-weighting according to CCIR 468-3, quasi peak;A-weighting according to IEC 61672-1, RMS
  • Max SPL at 0 dBFS: 133 dB
  • Max SPL with 18 dB of preattenuation: 151 dB
  • Current consumption: max 150 mA (DPP)
  • Output stage weight: 70 g
  • Capsule weight: 15 g
  • Diameter: 22 mm
  • Length: 108 mm

All data with respect to 0 dB pre-attenuation and 0 dB gain.

Solution D Microphone Specifications:

  • Interface: AES42
  • Remote controlled functions:
    - Low-cut: flat, 40, 80, 160 Hz
    -Pre-attenuation: 0 , -6, -12, -18 dB
    - Gain: 0...63 dB in 1 dB steps,clickless
    - Test signal: 1 kHz, pink noise, white noise
    - Samplingrates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
    - Parametric compressor/limiter(incl. de-esser function)
    - Independent peak limiter avoiding anyclipping
    - Switch functions: soft muting, phase reverse, signal lights
    -Signal lights: red4) and blue LEDs
    - System functions, firmware download
  • A/D conversion: Neumann process (patented), 28-bit internal word length
  • Digital signal processing: Fixed-point, variable internal word length 28 bits to 60 bits
  • Synchronization:
    - Asynchronous operation (free-running, AES42 - Mode1), basic frequency accuracy: ┬▒ 25 ppm
    - Synchronous operation (AES42 - Mode 2), pulling range: Min. ┬▒ 100 ppm
  • Power supply (phantom power complying with AES42)
  • Output: 3-pin XLR-M, 24 bits as per AES/EBU (AES3)

AES/EBU Connection Kit

The Connection Kit serves to supply power to digital microphones, which are in accordance with the AES42 standard.  The microphone audio signal is made available at the Connection Kit output in AES/EBU format.

The remote control and synchronization capabilities of the AES42 standard cannot be used with the Connection Kit; they are operable only with the DMI-2 or DMI-8 digital microphone interface.

Technical Data:

  • Connector: 3-pin XLR-F, 3-pin XLR-M output
  • Approximate Weight: 130 g
  • H x W x D: 32 mm x 26 mm x 105 mm
  • Power Supply: 90-240 V, 50/60 Hz
