Sanken WMS-5
5 Channel ENG Surround Mic

OUR PART #  WMS-5

Our Price: $4,750.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

Professional field microphone for five channel surround capturing. Dual M-S stereo capsules are placed to maintain precise phase-coherence and accurate surround audio reproduction. It features five discrete balanced XLR output connectors and M-S to left/right stereo matrix circuitry in microphone body.

Features;

  • 5 surround outputs from a microphone (L, C, R, LS, RS)
  • Compact size, 234.9mm(Length), 235g(weight)
  • Precise phase coherent M, S, M capsule layout
  • MS to LR Matrix circuitry in microphone body
  • Ideal 5.0 sound localization
  • Various accessories for outdoor shooting

Specifications:

  • Transducer: DC Biased Condenser
  • Polar Pattern: 5-Channel Surround
  • Frequency Response: 50Hz to 20KHz
  • Signal-to-Noise Ratio:
    Mono - Less than 20dB (A)
    Stereo - Less than22dB (A)
    Surround - Less than 22dB (A)
  • Maximum Input Sound Level: More than 120dB
  • Power Requirements: Universal Phantom Feeding DC48V +/- 4V (per channel)
  • Output Impedance: 120 ohms +/- 30%
  • Output Connectors: 3-pin XLR x5
  • Dimensions (LxDiameter): 9.25 x 1.09" (234.9 x 27.8mm)
  • Weight: 235g (8.28 oz)
Softie Short Fur for WMS-5Sanken WJ-5 Softie Short Fur for WMS-5

Short hair softie windscreen for the WMS-5 surround sound microphone. For basic wind noise protection during outdoor and indoor use.

Usually ships in 7-14 business days.
Need it sooner? Call us!

Free Shipping Available

Our Price:$340.00

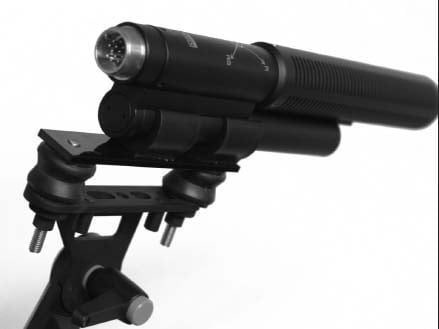

Suspension without Handgrip for WMS5Sanken WGS-5 Suspension without Handgrip for WMS5

Suspension without handgrip for the WMS-5 microphone.

Usually ships in 7-14 business days.
Need it sooner? Call us!

Free Shipping Available

Our Price:$210.00
