Aviom 6416Y2

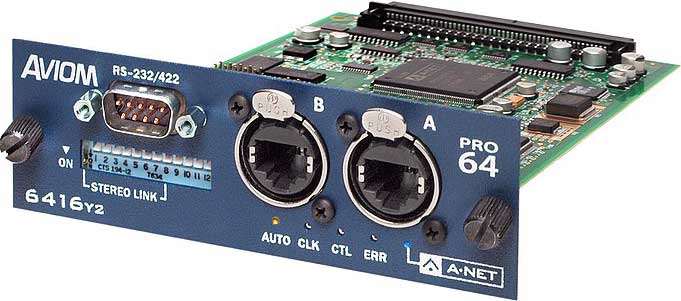

16x16 A-Net Pro64 I/O Expansion Card for Yamaha Products Supporting Yamaha's MY Expansion Card Format

OUR PART #:  6416Y2

The 6416Y2 A-Net Card is compatible with all Aviom Pro64 Series products, and, with an ASI A-Net Systems Interface module...
Learn More

Related Products

The 6416Y2 A-Net Card is compatible with all Aviom Pro64 Series products, and, with an ASI A-Net Systems Interface module, can also be used with Pro16 Series output products, such as the industry standard A-16II Personal Mixer. (* Important Note: The original A-16 Personal Mixer is not compatible with the 6416Y2 Card. Also, Pro16 input modules including the AN-16/i and AN-16/i-M are not compatible with the 6416Y2 card.)

The 6416Y2 A-Net Card supports up to 16 channels in and 16 channels out simultaneously, depending on the Yamaha host product's capacity and the selected system sample rate. Multiple cards may be used in a single host device (see the table below), providing up to 64 channels in and 64 channels out simultaneously. Inputs and outputs may be assigned to one of four A-Net network slot banks, while input channels may be individually activated as needed.

In addition, the 6416Y2 A-Net Card supports two interface paths to the Pro64 network's revolutionary Virtual Data Cables. The card features a front-panel DB9 connector for either RS-232 or RS-422 control data. In certain Yamaha digital consoles (LS9 series), control data can be routed to the card through the backplane connector, as these consoles do not have DB9 remote control ports built in. Internal DIP switches allow the VDC data paths to be configured for a variety of uses, including passing control data for remote Yamaha AD8HR microphone preamps with compatible Yamaha digital consoles.

Note: While the 01v96 and 02R96 digital consoles are compatible with the 6416Y2 Card for digital audio I/O routing, no provision for controlling remote preamps via RS-422 is available on these consoles.

Pro64 audio networks featuring 6416Y2 A-Net Cards can be configured to slave to a host console or to pass clock information to the console through the card slot backplane. All Pro64 products feature Aviom's exclusive clock management algorithms, ensuring pristine clocking throughout a network, including console-to-console communications.

6416Y2 A-Net Cards can be connected serially or in parallel, using a Pro64 Merger Hub such as the MH10 or MH10f.

The 6416Y2 Card is compatible with the following Yamaha digital products. Note that the number of 6416Y2 Cards that can be used in each Yamaha device may be less than total number of available MY card slots in some cases. (Yamaha's recommendation for the number of cards that can be installed simultaneously in each product is based on the power available from the host's power supply.)

AW4416 2 1
AW2816 1 2
DIO8 8 5
DM2000 6 5
02R96 4 3
DM1000 2 2
01V96 1 1
DME24N ** 1 1
DME64N 4 4
PM5D/PM5D-RH 4 4
M7CL 3 3
AW2400 1 1
LS9-16 1 1
LS9-32 2 2

** To use a 6416Y2 Card that has a serial number before #10099 with the DME24N, contact Aviom Customer Support for upgrade information.

Aviom 6416Y2 Features:

  • Up to 16 channels in and 16 channels out simultaneously
  • Variable sample rates: 44.1/48kHz or 88.2/96kHz
  • Flexible and robust clocking allowing simple console-to-console digital connections
  • Stereo Link per channel pair for Pro16 Personal Mixers
  • RS-422/232 Virtual Data Cable I/O (compatible with Yamaha remote control protocol)
  • Multiple cards per console
  • Compatible with Yamaha mini-YGDAI card slots

Aviom 6416Y2 Specifications:

  • Channels: Up to 16 inputs and 16 outputs simultaneously
  • Interface Format: Yamaha mini-YGDAI (MY) Expansion Card
  • Sample Rates:
    • 1x: 39.7-52kHz
    • 2x: 79.4-104kHz
    • 24-bit resolution
  • Max. Ambient Temp: 50°C
  • Virtual Data Cables:
    • RS-232/RS-422: DB9 connector; DIP switch configuration
    • Control data from LS9 series backplane may be routed to VDCs' DIP switch configuration
  • A-Net: 2 EtherCon RJ45 connectors
  • A-Net Cable Length: 400 feet (120 meters) between devices
  • A-Pro64 Network Latency: Analog input to analog output: <800µs
  • Power Supply: +3.3V, +5V, +15V supplied by Yamaha host device
  • Dimensions (W x D x H): 4.75" x 6.25" x 1.5"
  • Weight: 0.8 lbs
