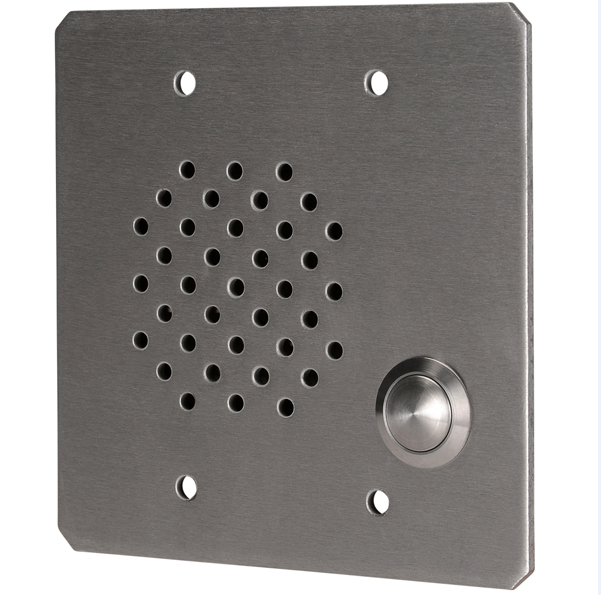

Quam CIS4/8 Dual-Gang Intercom Station, Vandal-Resistant, 8 Ohm

The Quam CISx / xx is a complete vandal-resistant call-in station with integral speaker / microphone and momentary, normally open, push-to-call button. The faceplate is 12 gauge, brushed stainless steel with tamper-resistant, #6-32 'pin-in-hex' hardware. An optional, red mushroom button can be substituted at extra cost at the time of order.

Intended Use

All variants, Outdoor or indoor environment

Program material

Signal tones and voice

Specifications:

• Speaker Size: 2.5”
• Average Sensitivity 87dB-SPL, 1W / 1M
• Power rating 1W RMS, EIA 426A Standard
• Nominal Coverage Angle: 90° Included Angle, -6dB / 2kHz, half space
• Audio Connections, 8Ω Speaker: 0.205 spade lug
