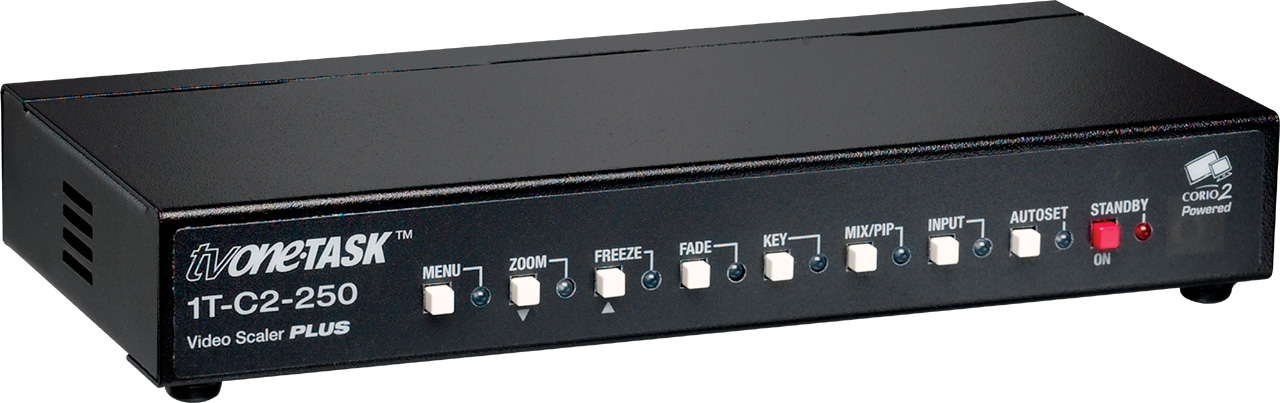

TV One 1T-C2-250
Video Scaler PLUS with CORIO2 Technology

OUR PART #  1T-C2-250

Our Price: $495.00
Usually ships in 7-14 business days.
Need it sooner? Call us!

1T-C2-250 Video Scaler PLUS is based on TV One’s exclusive CORIO2™ technology and provides high quality up conversion from standard video formats to Computer or HDTV signals in a compact package. 1T-C2-250 Video Scaler PLUS has all the functions and features of the 1T-C2-200 and adds a wide variety of additional capabilities, including Genlock, Chromakey, Lumakey and Mixing. The Key Mode allows computer graphics to be keyed over an external Composite or S-Video signal or visa versa. The keyed image may be faded in and out. Due to the 4:4:4 sampling format, precise keying at the pixel level can be achieved. The Mix Mode permits glitch-free mixing between the computer image and external video. The PIP Mode allows either of the computer inputs to be inset in a window over either of the video inputs or visa versa.

NTSC and PAL video standards are supported. Inputs can be Composite or S-Video. A computer bypass is also provided. The output is selectable as any computer resolution up to 2048x2048 at any vertical refresh rate and all HDTV resolutions up to 1080p. A wide variety of computer signal formats are available to support PC, Mac and Workstation formats.All the functions can be controlled via the front panel Push Buttons, an Infrared Control Remote Unit or via an RS-232 connection. A Windows Control Panel is provided and most third party control systems interface directly with the entire C2 range of products. An On-Screen Display is available to assist in setup.

Variable Zoom to 10X allows you to enlarge any part of the video image to fill the entire computer screen and position controls allow you to move around to any area desired. Variable Shrink to as little as 10% allows fitting the image onto most displays. The full bandwidth chroma sampling insures faithfully reproduced, high resolution colors.  TV One's exclusive AutoSet® feature takes the hassle out of setup by automatically sizing and positioning the computer image to fit exactly on the video screen. All settings are stored in non-volatile memory and are retained even when power is switched off.

Features:

  • Automatic incoming resolution detection
  • 1x Composite and 1x S-Video Input
  • Computer Resolutions to 2048x2048
  • HDTV Resolutions to 1080p
  • Multiple Worldwide Television Standards
  • 1x RGB/YPbPr Output
  • Integral 4x1 Stereo Audio RoutingSwitcher
  • RS-232 Interface and Windows ControlPanel
  • IR Remote Control
  • Variable Image Zoom to 10X and Shrink to10%
  • Optional Single/Dual Rackmount Kit
  • Chromakey and Lumakey
  • Mix and PIP
  • AutoSet® - Automatic picturesizing

Specifications:

See attached documention for specification data.

TV One 1T-C2-250
Video Scaler PLUS with CORIO2 Technology

OUR PART #  1T-C2-250

Product Information:

1T-C2-250 Video Scaler PLUS is based on TV One’s exclusive CORIO2™ technology and provides high quality up conversion from standard video formats to Computer or HDTV signals in a compact package. 1T-C2-250 Video Scaler PLUS has all the functions and features of the 1T-C2-200 and adds a wide variety of additional capabilities, including Genlock, Chromakey, Lumakey and Mixing. The Key Mode allows computer graphics to be keyed over an external Composite or S-Video signal or visa versa. The keyed image may be faded in and out. Due to the 4:4:4 sampling format, precise keying at the pixel level can be achieved. The Mix Mode permits glitch-free mixing between the computer image and external video. The PIP Mode allows either of the computer inputs to be inset in a window over either of the video inputs or visa versa.

NTSC and PAL video standards are supported. Inputs can be Composite or S-Video. A computer bypass is also provided. The output is selectable as any computer resolution up to 2048x2048 at any vertical refresh rate and all HDTV resolutions up to 1080p. A wide variety of computer signal formats are available to support PC, Mac and Workstation formats.All the functions can be controlled via the front panel Push Buttons, an Infrared Control Remote Unit or via an RS-232 connection. A Windows Control Panel is provided and most third party control systems interface directly with the entire C2 range of products. An On-Screen Display is available to assist in setup.

Variable Zoom to 10X allows you to enlarge any part of the video image to fill the entire computer screen and position controls allow you to move around to any area desired. Variable Shrink to as little as 10% allows fitting the image onto most displays. The full bandwidth chroma sampling insures faithfully reproduced, high resolution colors.  TV One's exclusive AutoSet® feature takes the hassle out of setup by automatically sizing and positioning the computer image to fit exactly on the video screen. All settings are stored in non-volatile memory and are retained even when power is switched off.

Features:

  • Automatic incoming resolution detection
  • 1x Composite and 1x S-Video Input
  • Computer Resolutions to 2048x2048
  • HDTV Resolutions to 1080p
  • Multiple Worldwide Television Standards
  • 1x RGB/YPbPr Output
  • Integral 4x1 Stereo Audio RoutingSwitcher
  • RS-232 Interface and Windows ControlPanel
  • IR Remote Control
  • Variable Image Zoom to 10X and Shrink to10%
  • Optional Single/Dual Rackmount Kit
  • Chromakey and Lumakey
  • Mix and PIP
  • AutoSet® - Automatic picturesizing

Specifications:

See attached documention for specification data.
