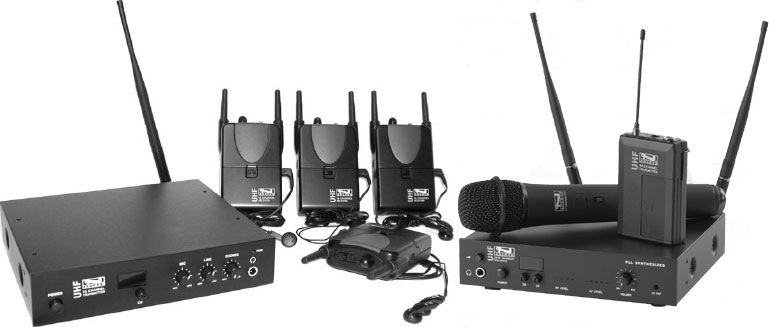

Anchor ALD-40
Assistive Listening System with 4 Body Pack Receivers and 1 Base Station Transmitter, Also Includes UHF-6400/HH System with 64 Channel Base Station Receiver and Handheld Microphone Transmitter

OUR PART #:  ALD-40

Our Price: $1,240.00
List Price: $1,550.00
You save 20%!
Write the first review.
Anchor ALD-40
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

Assistive Listening System with UHF-6400/HH System Includes:

  • 1 Base Station Transmitter
  • 4 Belt Pack Receivers
  • 4 In-Ear Headphones
  • Rackmount Kit & RCA Cable
  • 1 64 Channel Base Station Receiver
  • 1 64 Channel Handheld Microphone Transmitter
  • 10 "AA" Batteries
  • Rackmount Kit & RCA Cable

Anchor Audio assistive listening systems are designed to help hard of hearing people better understand speech, music, and other sounds during a movie, performance, lecture, meeting or worship service. Ideal for:

  • Houses of Worship
  • Theaters
  • Cinemas
  • Auditoriums
  • Classrooms

System Features

  • 16 User Selectable UHF Channels
  • Expandable for Unlimited Number of Users
  • ADA Compliant Range Up To 300' Line Of Sight
  • Storage Case Available
  • One-Way Communication

Base Station Transmitter Specifications

  • System Range: Up to 300' Line of Sight
  • Frequency Range: UHF 682-698MHz
  • RF Power Output: 100 mW
  • Frequency Stability: +/-0.005%
  • Maximum Deviation: +/-48kHz w/Limiting Compressor
  • Spurious Emission: >60dB below carrier frequency
  • T.H.D.: <1% @ 1kHz
  • Power Supply: DC 12~18V
  • Tone Key: 32.768 kHz
  • Current Consumption: 85mA +/-10mA (10mW); 140mA +/-10mA (100mW)
  • Dimensions (W x H x D): 8.3" x 1.7" x 7.1"

Belt Pack Receiver Specifications

  • System Range: Up to 300' Line of Sight
  • Frequency Range: UHF 682-698 MHz
  • Oscillator: PLL Synthesized
  • Receiving Mode: Single Channel Diversity
  • Frequency Stability: +/-0.005%
  • Receiving Sensitivity: at 5dBuV over 80 dB S/N Ratio
  • Image & Spurious Rejection: 80 dB minimum
  • Selectivity: >50dB
  • Modulation Mode: FM
  • IF Frequency: 1st: 56 MHz/2nd: 10.7 MHz
  • Dynamic Range: >96 dB
  • S/N Ratio Antenna Input: >94 dB @ 15kHz Deviation & 60 dBuV
  • AF Response: Headphone: 100Hz to 10kHz (+/-3dB); Line: 40Hz to 15kHz (+/-3dB)
  • T.H.D.: <1% @ 1kHz
  • Power Supply: DC 3V (2 x 1.5V AA batteries)
  • Audio Output: Headphone Stereo: 20mW; Line Stereo Level: -10dB
  • Current Consumption: 130 mA +/-10mA
  • Dimensions (W x H x D): 3" x 4.2" x 1.1"
