Global Truss IB-4049
3.28 ft. I-Beam Truss Segment

OUR PART #:  IB-4049

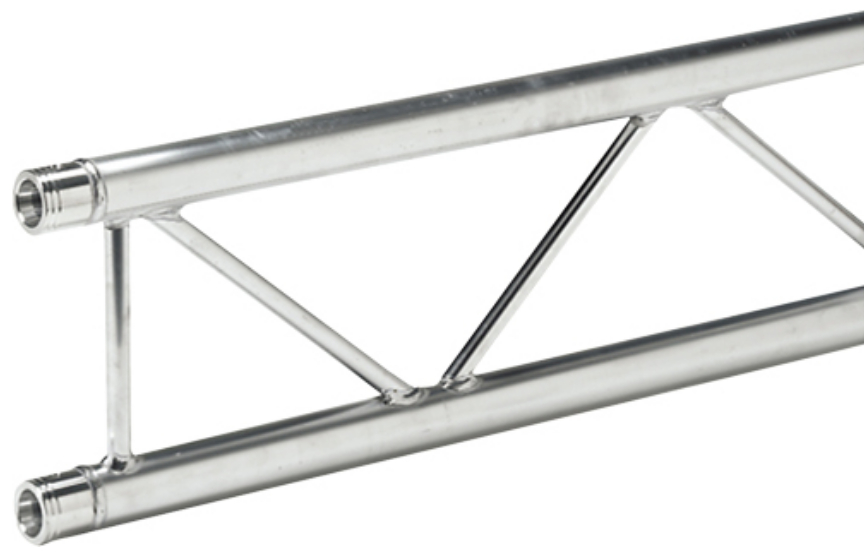

The IB-4049 from Global Truss is an F32 I-Beam truss straight segment that is designed for framing signs, video screens and low ceiling applications.
Learn More
Our Price: $113.40
List Price: $170.95
You save 34%!
Be the first to review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Global Truss IB-4049
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The IB-4049 from Global Truss is an F32 I-Beam truss straight segment that is designed for framing signs, video screens and low ceiling applications. This item comes equipped with connecting hardware and is fabricated by certified TUV welders.

Global Truss IB-4049 Specifications:

  • Length: 3.28 ft.
  • Overall Width: 11-7/16" (290 mm)
  • Outer Diameter Tubing: 2" (50 mm)
  • Diagonal Bracing: 0.75" (20 mm)
  • Wall Thickness: 0.08" (2mm)
  • Unit Weight: 8 lbs.
