Lowell LUH15T
70v Speaker

OUR PART #:  LUH15T

The LUH-15T is a ‘Universal Use’ 15W re-entrant horn in a compact 3.361"D size.
Learn More
Our Price: $137.09
List Price: $201.06
You save 32%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Lowell LUH15T
Qty:
In Stock

Similar Products

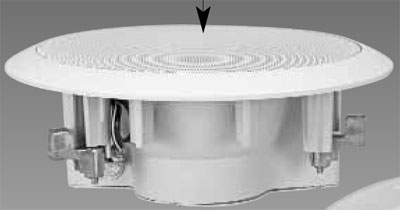

The LUH-15T is a ‘Universal Use’ 15W re-entrant horn in a compact 3.361"D size. The attractive package includes the cast aluminum horn with aluminum trim ring and press fit grille for no visible hardware providing an architectural solution for anywhere an environmentally resistant high intelligibility speaker is specified.

It installs indoors or out, using adjustable clamps or screws with or without a 4"D backbox in recessed or surface applications. Although a grille is included, the UNIHORNâ„¢ will accept a standard 8" screw-mount speaker grille and backbox if desired. Simple 2-wire hook up, dual capacitor circuitry, and 105dB SPL (1W1M) make this horn ideal for standard or supervised paging/signaling applications. Connections are made to a rear metal clamp and the 25/70V transformer is screwdriver adjustable on the front and rear. Finish is Network Grey powder epoxy. Weight is 6 lbs

Features:

  • All-in-one package includes an aluminum trim ring/grille
  • Fits into a 4"D backbox or no backbox
  • Clear and loud paging/music with superior aesthetics
  • Installs using clamps or screws into new or retrofit areas
  • Has vandal resistant grille options.
  • Features dual capacitor circuitry for standard paging or supervised use
  • Easy 2-wire hook-up to rear access cable clamp
  • Front and rear accessible transformer selection switch
  • Weather-resistant assembly for indoor or outdoor use
  • Integral seismic tie-off brackets

Specifications:

  • Power Handling, Nominal: 15 Watts RMS
  • Sensitivity: 110 dB SPL (peak) 1W/1M, 105 dB SPL (average) 1W/1M
  • Frequency Response: 600Hz – 12kHz (nominal), 740Hz – 7.4kHz (+/- 6dB)
  • Dispersion Angle: 80 degrees @ 200Hz octace _-6dB)
  • Impedance: 5000, 2500, 1300, 666, 333, 89, 45 ohms
  • Transformer Taps: 25V @ .48, .94, 1.8, 3.8, 7.5, 15W
  • Capacitor: DC blocking series connected
