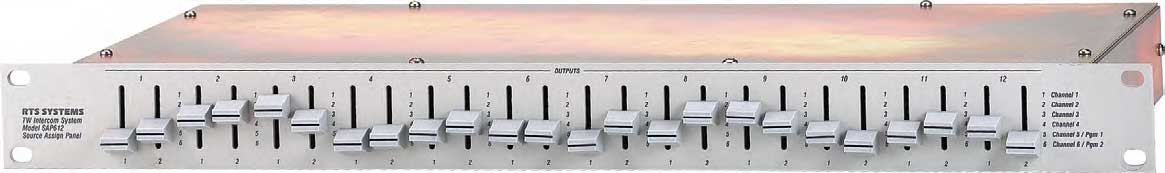

RTS SAP-612
Source Assignment Panel (RTS Catalog #: 9000687200)

OUR PART #:  SAP612

RTS' SAP-612 source assign panel independently assigns each of 24 TW channels (12 two-channel TW user station strings) to any one of six busses, communication channels.
Learn More
Our Price: $946.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

RTS SAP-612
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

RTS' SAP-612 source assign panel independently assigns each of 24 TW channels (12 two-channel TW user station strings) to any one of six busses, communication channels. All channels assigned to a common buss channel can intercommunicate and exchange call signals. One to three TW power supplies (such as models PS-31 or PS-15) may be conveniently connected to the SAP-612 to distribute power to the intercom stations. Alternatively, the SAP-612 may be used with a non-TW power source. Switchable 200 ohm line terminations are built into the SAP-612 for proper line termination when using a non-TW power source. The SAP-612 has two balanced, transformer isolated program inputs. Program 1 is permanently assigned to buss channel 5, and program 2 is permanently assigned to buss channel 6.

Specifications:

  • Maximum Switch Carrying Current: 1 amp/output
  • Maximum Switch Breaking Current: 0.5 amp/output
  • Inputs:
    Full duplex lines (busses): 6
    Program Inputs: 2
  • Outputs (2 channel):
  • User Station Strings: 12
  • Program Inputs:
    Impedance: 600 ohms
    Level: 0 dBm
  • Power Requirements: No external power required; Power distributed from RTS┬« Systems power supplies PS-15 or PS-31 connected at rear panel of SAP-612.
  • Dimensions: 1.72" (44 mm) high, 19" (483 mm) wide 8" (20.1mm) deep (Allow another 4" (102 mm) depth for cables on rear panel)
  • Weight: 4.5 lbs.
  • Finish: Gray
