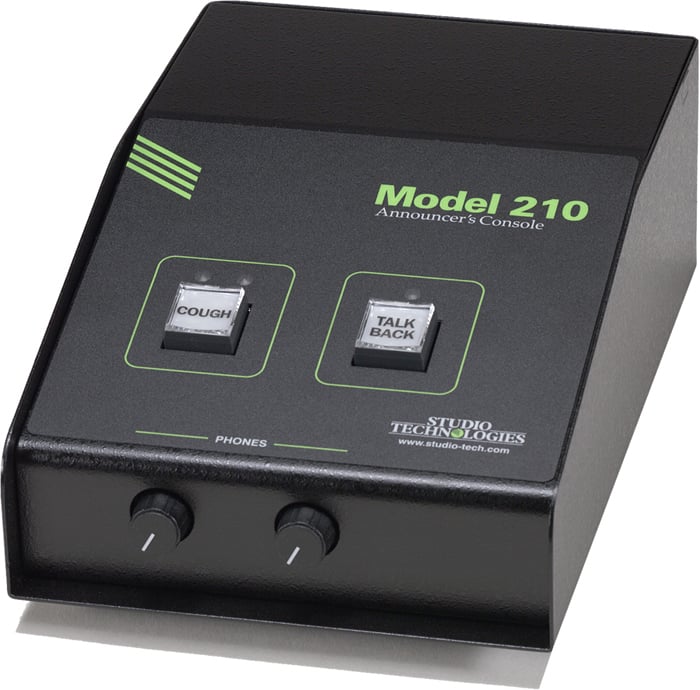

Studio Technologies MODEL-210
Announcer's Console

OUR PART #  MODEL-210

Our Price: $689.44
List Price: $695.00
(Low Price Guarantee)
In Stock

Recommended Accessories

The Model 210 Announcer's Console is an audio control "hub" for announcers, commentators, and production personnel. Compatible with essentially all broadcast and production audio system environments, the tabletop unit is often used for on-air sports broadcasting.

Flexible Setup
Two pushbutton switches—Main and Talkback—operate under microprocessor control to offer unmatched flexibility and "click-free" audio routing. The Main button controls the main output with operating modes that include push-to-mute (cough), push-to-talk, and latching. The Talkback button controls a dedicated line-level output to provide talent-oriented cue signals to production personnel. For non-on-air applications a special feature set referred to as "production" mode can be enabled. Simple customization of the button labels ensures the user is presented with an easy-to-use set of controls and indicators.

Superior Audio
Featuring a studio-inspired low-noise/low-distortion preamplifier design, adjustable gain, and 48 volt phantom power, the Model 210 is compatible with balanced dynamic and condenser microphones. With high output capability and the use of an output transformer expressly designed for professional audio applications, the main output offers broadcast-quality audio as the on-air or other primary audio feed.

Powerful Monitoring
The headphone output's circuitry provides high output levels with very low distortion and noise. The user can monitor either or both IFB channels. Each source can be individually assigned to the left, right, or both channels of the binaural headphone output. Two rotary controls allow the user to adjust the headphone output levels.

Features:

  • Microphone preamp with selectable gain and 48 volt phantom power
  • Broadcast IFB input
  • Two pushbutton switches offer programmable "click-free" audio path control
  • Transformer-balanced main output
  • Line-level talkback output
  • Stereo headphone monitoring
  • Two rotary headphone output level controls
  • Microcontroller-directed audio routing
  • Powered by IFB or by external DC source
  • All configuration switches accessible via the bottom of the enclosure

Specifications:

General Audio:
Frequency Response: 20 Hz-20 kHz, ±0.1 dB, mic in/main out
Distortion (THD+N): 0.008%, measured at 1 kHz, mic in/main out
S/N Ratio: 80 dB, referenced to –46 dBu mic in/–2 dBu main out

Connectors:
Mic In, IFB In: 3-pin female XLR-type
Main Out, Talkback Out: 3-pin male XLR-type
Headphone Out: ¼-inch 3-conductor phone jack
24 Vdc Power In: 2.1 x 5.5 mm coaxial power jack

Spare Connector Locations: 2, allows one or two Neutrik NC*D-L-1 connectors to be installed (*=3F, 3M, 5F, 5M, 6F, 6FS, etc.)

Microphone Input/Preamplifier:
Type: electronically balanced
Input Impedance: 2 k ohms, nominal
Gain Range: 20 to 60 dB, nominal, adjustable in 10 dB steps
Compatibility: dynamic or phantom-powered mics
Phantom Power: 48 Vdc, nominal, meets IEC 61938

Compressor:
Threshold: 2 dB above nominal level
Attack/Release Time: 2 mSec/100 mSec, nominal
Slope: 5:1, nominal

IFB Input:
Type: 2-channel, unbalanced (pin 1 common; pin 2 DC with channel 1 audio; pin 3 channel 2 audio)
Impedance: 10 k ohms, nominal
Nominal Level: –10 dBu

Optional Line Inputs: 2
Type: balanced, transformer-coupled
Impedance: 10 k ohms, nominal
Nominal Level: +4 dBu

Main Output:
Type: balanced, transformer-coupled
Nominal Level: –2 dBu
Maximum Level: +20 dBu into 2 k ohms
Impedance: 100 ohms, nominal

Talkback Output:
Type: transformer-coupled with series capacitors and isolation resistors
Impedance: 600 ohms, nominal
Nominal Level: +4 dBu
Maximum Level: +11 dBu (compressor restricts maximum)

Headphone Output: 1, binaural (stereo)
Compatibility: intended for connection to mono or stereo headphones or headsets with nominal impedance of 100 ohms or greater
Type: voltage driver
Maximum Output Voltage: 8 Vpp, 150 ohm load

Power Sources:
IFB: 24-32 Vdc, 105 mA
External: 24 Vdc nominal, 70 mA; acceptable range 20-30 Vdc. All units include a universal input/24 Vdc output power supply.

Dimensions (Overall):
5.6 inches wide (14.2 cm)
3.3 inches high (8.4 cm)
8.5 inches deep (22.4 cm)

Weight: 3.4 pounds (1.6 kg)
