Elation Pro Lighting Opto Branch 4
1RU 4-Way DMX Distributor/Booster

OUR PART #:  OPTO-BRANCH/4

The Elation Pro Lighting Opto Branch 4 is a 19” single rack space, 4-way DMX distributor/booster with 3 and 5 pin XLR input jacks.
Learn More
Our Price: $240.00
List Price: $300.00
You save 20%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Elation Pro Lighting Opto Branch 4
Qty:
In Stock

Similar Products

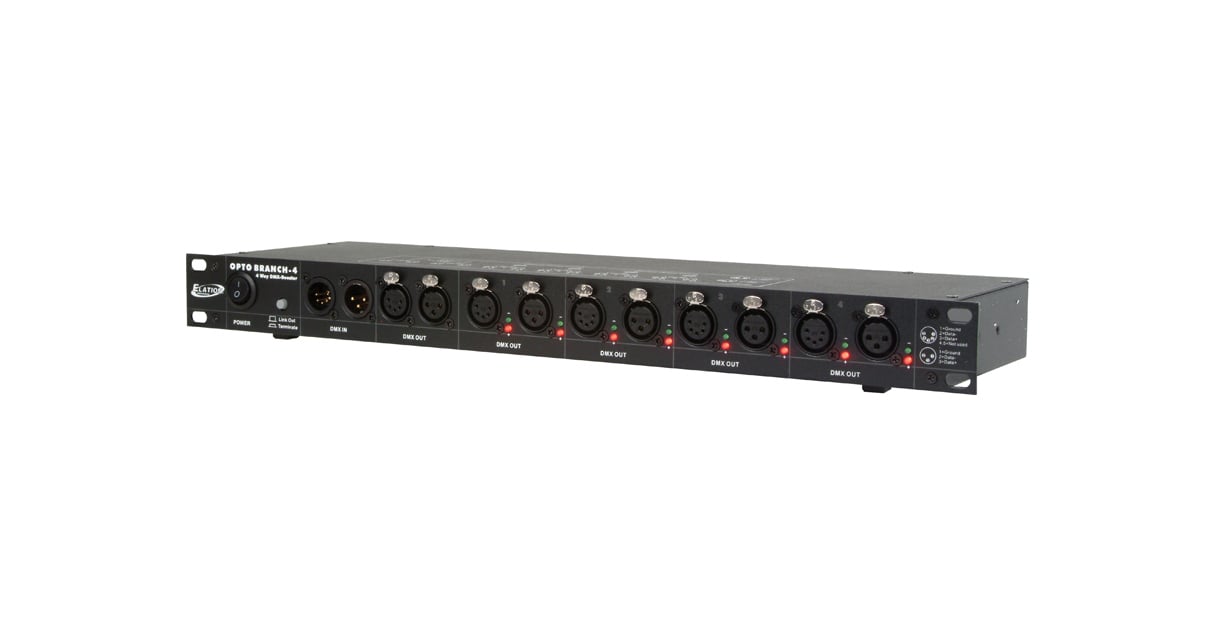

The Elation Pro Lighting Opto Branch 4 is a 19” single rack space, 4-way DMX distributor/booster with 3 and 5 pin XLR input jacks. This unit takes the incoming DMX signal and splits it to four separate outputs. All outputs include 3 & 5 pin XLR sockets and are electronically isolated from each other to ensure uninterrupted data. In addition, each output has dedicated drivers to boost the incoming signal. Finally, a Link Out/Terminate switch is in place to help make any troubleshooting easier.

Elation Pro Lighting Opto Branch 4 Features & Specifications:

  • 4-way DMX distributor
  • 19" rack mountable - single space
  • 1x DMX input, 4x DMX outputs & 1 DMX thru
  • All outputs are electronically & optically isolated
  • 3- & 5-pin XLR DMX connectors
  • Data + & Data - L.E.D. indicators
  • Linkable with other OPTO BRANCH 4S via 3 or 5 pin XLR
  • Link out/terminate button for troubleshooting
  • 50mA internal fuse
  • Dimensions (LxWxH): 19" x 5.5" x 1.73"
  • Weight: 5.29 lbs.
  • Power input: 120VAC ~ 60Hz

Click to download
