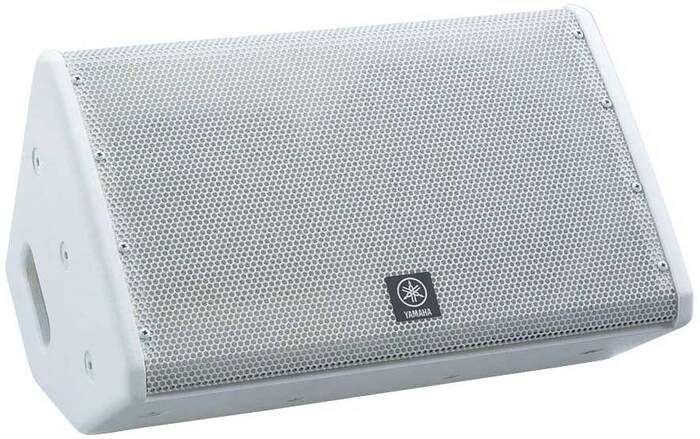

Product Overview
The Installation Series provides a wide range of models with seamlessly integrated hardware to meet the expectations of contractors and end-users for audio quality, ease of installation, and system design. All models feature a phase differential of less than 90 at 2 kHz . This minimizes the reduction of sound level and unwanted coloration in the "overlapped" area when combining/arraying speakers. The overall effect on frequency response is held to a minimum, ensuring a consistent family sound of speakers.
Features:
- Ideal for medium to large-scale installations.
- Uniform phase response throughout the entire series.
- A wide selection of dispersion characteristics for long-range, shortrange, and long/short range use.
- Standard U-bracket and array-frame hardware available for maximum installation convenience and efficiency.
- Switchable single-amp and bi-amp drive modes.
- Certified measurement and prediction EASE data. Including polar plots, CAD files, and DXF data.
- Constructed of high strength premium 11-ply / 5/8 inch-thick Finland Birch enclosures on most models.
- Grilles have 63% transparency for better clarity of sound.
- Speakers include a barrier-strip and NL4 Neutrik* with parallel connections.
- Horns are manufactured from fiber-reinforced plastic to minimize unwanted resonance.
- The entire line of speakers incorporates rotatable horns, when space consideration dictates the speakers orientation.
- High frequency drivers feature one-piece titanium diaphragms formed to precision tolerances for high performance, endurance and superior sonic quality.
Specifications:
- Frequency Response: 75 Hz – 18 kHz
- Frequency Range: 55 Hz – 19 kHz
- Nominal Coverage (H xV. -6dB): 90 deg. X 60 deg
- Power Rating: 100 W (EIA)
- Nominal Impedance: 8 ohms
- Sensitivity (1 W @ 1 m): 95 dB SPL
- Calculated Peak SPL: 121 dB SPL
- Calculated Continuous SPL: 115 dB SPL
- LF Component: 8" Woofer, 2" Voice Coil
- HF Component: Rotatable Constant Directivity Horn, 1" exit, 1.7" VoiceCoil Compression Driver
- Dimensions (h x w x d): 17.6 x 11.1 x 9.8 in
- Weight: 26 lbs.
- Shape: Multi-angle wedge
- Material: 5/8" 11-ply Finland Birch
- Finish: Textured White
- Grill: 14 gauge powder coated perforated steel backed with acoustically transparent reticulated foam
- Connectors: 2x Neutric NL4 and barrier strip, wired in parallel
- Suspension Points: 11x M10, 6x M8
- Pole Mounts: One
- Handle: One
- U-Bracket: UB2108(W)
