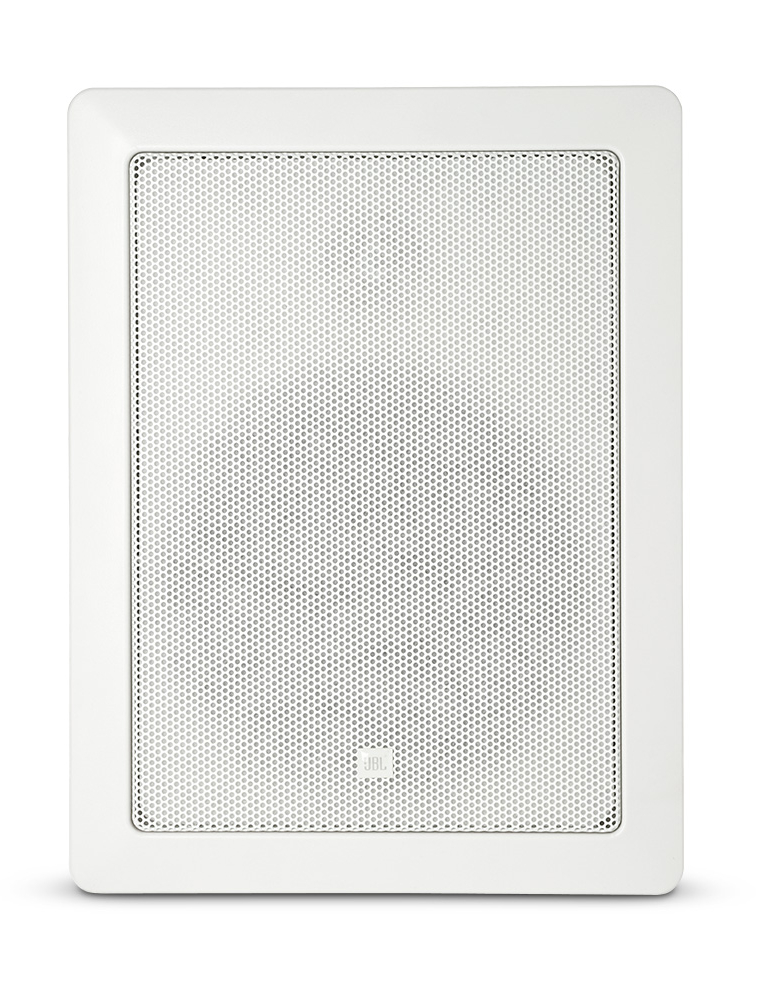

JBL CONTROL 126WT 6.5" 2-Way In-Wall Speaker, 70V

OUR PART #: CONTROL-126WT MFR #: CONTROL 126WT

Copied to clipboard

The Control 126 WT is a premium in-wall speaker within the JBL Professional Control® Contractor line designed for applications such as foreground music, boardrooms... ...Read more

JBL CONTROL 126WT 6.5" 2-Way In-Wall Speaker, 70V Image 1
JBL CONTROL 126WT 6.5" 2-Way In-Wall Speaker, 70V Image 2
JBL CONTROL 126WT 6.5" 2-Way In-Wall Speaker, 70V Image 3
JBL CONTROL 126WT 6.5" 2-Way In-Wall Speaker, 70V
Our Price: $224.00
List Price: $273.81
You save 18%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$7/mo* with 36 month financing. ‡
Limited Time. Learn How
Item has an extended delivery time. Please call our Sales Pros for up-to-date information on product availability or alternatives.
This item can only be purchased in quantities of 2

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Control 126 WT is a premium in-wall speaker within the JBL Professional Control® Contractor line designed for applications such as foreground music, boardrooms, reception areas, airports, convention centers, cruise ships, retail outlets, restaurants, museums, surround locations, or any critical listening application where top performance from a loudspeaker with minimal visual impact is required.

Features

  • 6.5" (165 mm) polymer-coated aluminum-cone woofer with pure butyl rubber surround
  • 1" (25 mm) pure-titanium dome low diffraction swivel aimable titanium tweeter
  • High-slope crossover for natural midrange sound
  • Extended bandwidth performance of 38 Hz – 20 kHz
  • 50W continuous (100W program, 200W peak) power handling (126W)

Specifications

  • Frequency Range: 38 Hz - 20 kHz (-10 dB)
  • Power Capacity:
    • 200 W Peak
    • 100 W Continuous Program Power
    • 50 W Continuous Pink Noise
  • Transformer Taps: 70 V: 30 W, 15 W, 7.5 W & 3.7 Wtaps
  • Sensitivity: 88 dB SPL, 1W, 1 m (3.3 ft)
  • Nominal Impedance: 8 ohms

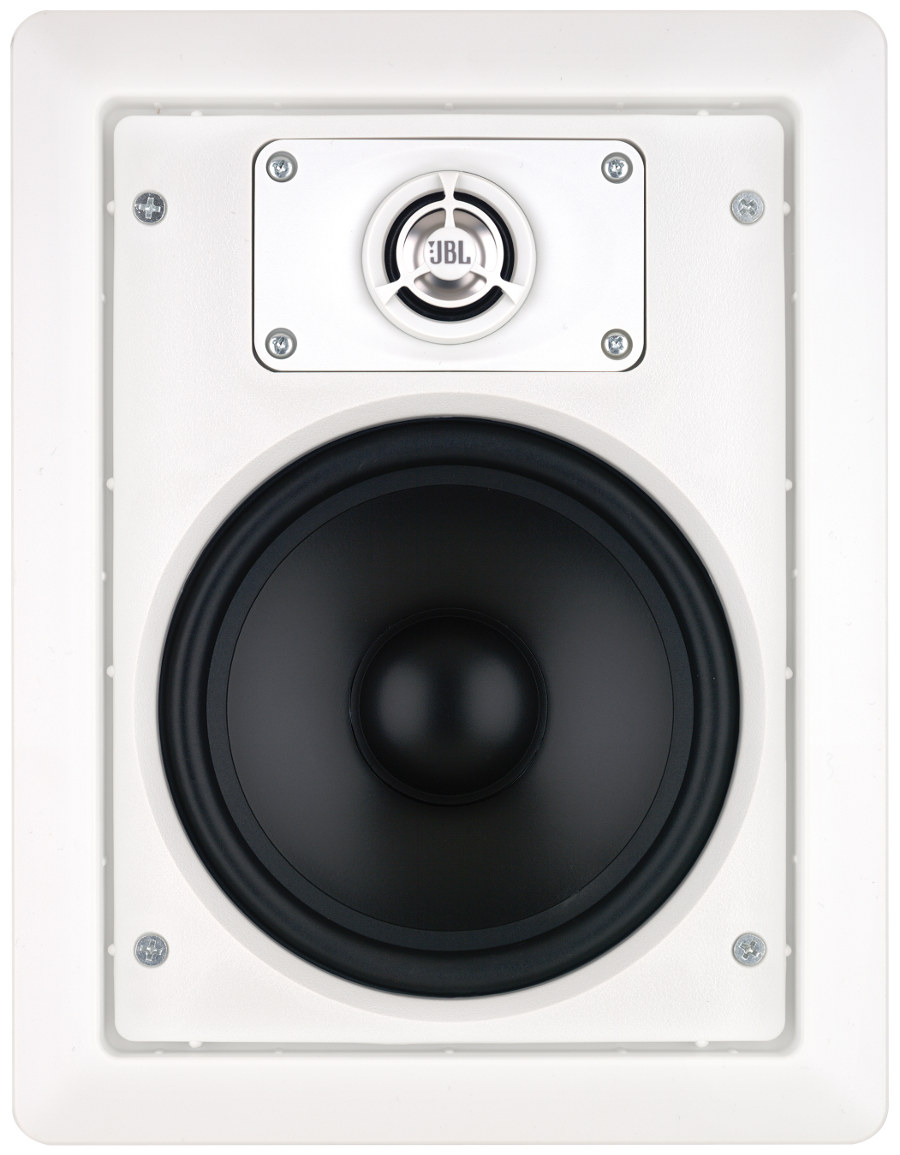

  • Low Frequency: 6.5" polymer-coated aluminum cone.
  • High-Frequency: 1" pure-titanium dome with cloth suspension on low-diffraction swivel-mount with -10 degree aimability.
  • Terminations: Screw-down Euroblock-type connector. Max wire size 14 AWG (1.5 mm)2
  • Crossover Network: 3rd order (18 dB/oct) Low Pass to the woofer and 3rd order (18 dB/oct) High Pass to the tweeter.
  • Optimum Air Cavity Behind Speaker: 20 to 40 liters (0.7 to 1.4 cu ft)
  • Outside Dimensions: 11" H x 8.5" W x 4.1" D, 3.8"D front of wall to back of speaker
  • Maximum Wall Thickness: 1.25"
  • Cutout Size: 9.7" H x 7.2" W
  • Net Weight (each): 4.5 lbs
  • Included Accessories: Cutout template & paint shield
