JBL CONTROL 128WT 8" 2-Way In-Wall Speaker, 70V

OUR PART #: CONTROL-128WT MFR #: CONTROL 128WT

Copied to clipboard

The Control 128WT is a premium in-wall speaker within the JBL Professional Control® Contractor line designed for applications such as foreground music, boardrooms... ...Read more

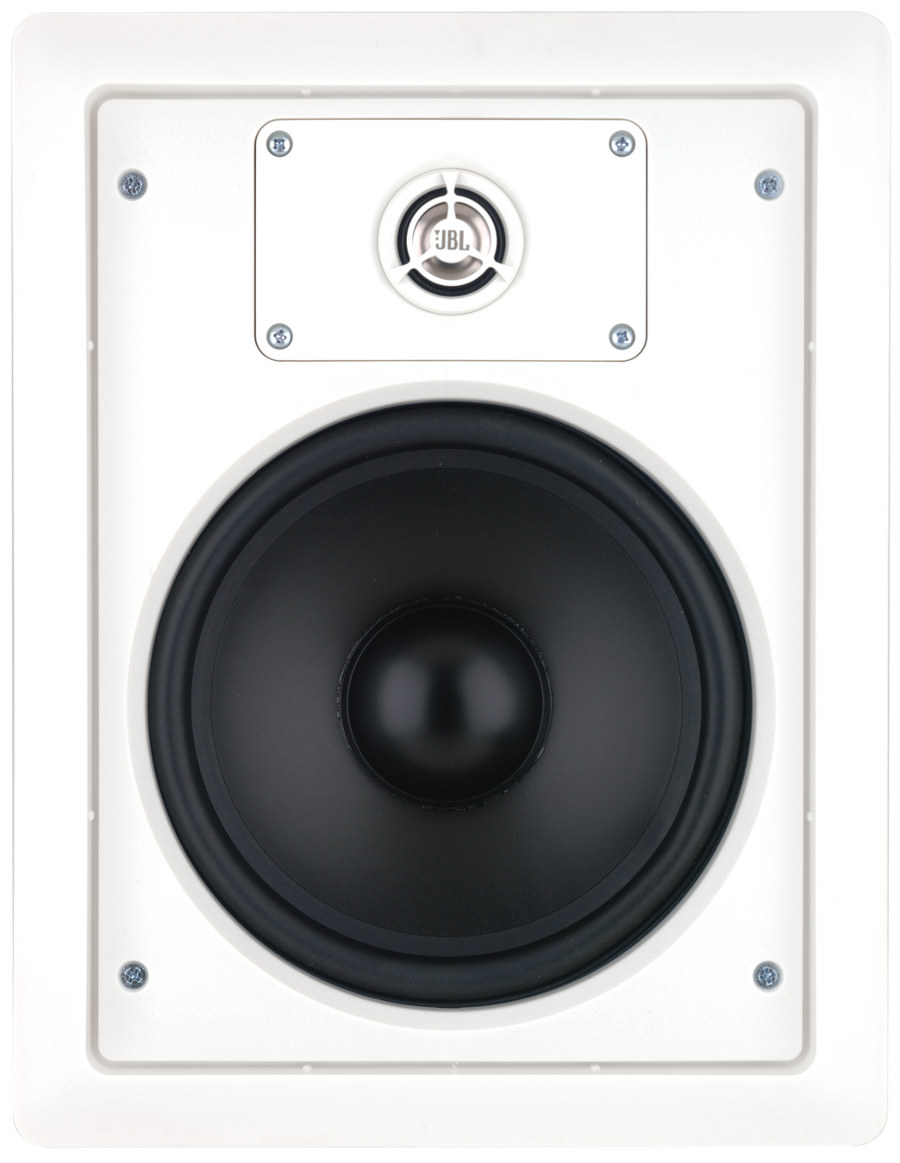

JBL CONTROL 128WT 8" 2-Way In-Wall Speaker, 70V Image 1
JBL CONTROL 128WT 8" 2-Way In-Wall Speaker, 70V Image 2
JBL CONTROL 128WT 8" 2-Way In-Wall Speaker, 70V
Our Price: $269.00
List Price: $336.39
You save 20%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$8/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.
This item can only be purchased in quantities of 2

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Control 128WT is a premium in-wall speaker within the JBL Professional Control® Contractor line designed for applications such as foreground music, boardrooms, reception areas, airports, convention centers, cruise ships, retail outlets, restaurants, museums, surround locations, or any critical listening application where top performance from a loudspeaker with minimal visual impact is required.

JBL CONTROL 128WT Features:

  • 8" (200 mm) polymer-coated aluminum-cone woofer with pure butyl rubber surround
  • 1" (25 mm) pure-titanium dome low-diffraction swivel aimable titanium tweeter
  • High-slope crossover for natural midrange sound
  • Extended bandwidth performance of 30 Hz – 20 kHz
  • 60 W continuous (120 W program, 240 W peak)
  • Power handling (128 W)

JBL CONTROL 128WT Specifications:

  • Frequency Range: 8 Hz - 20 kHz(-10 dB)
  • Transformer Taps:
    • 70 V: 50W, 25W, 12W & 6W
    • 100 V: 50W, 25W, & 12W
  • Sensitivity: 90 dB SPL, 1W, 1 m(3.3 ft)
  • Low Frequency: 8" polymer-coated aluminum cone, pure butyl rubber surround.
  • High-Frequency: 1" pure-titanium dome with cloth suspension on low-diffraction swivel-mount with-10 degree aimability.
  • Terminations: Screw-down Euroblock-type connector. Max wire size 14 AWG (1.5 mm)2
  • Crossover Network: 2nd order Low Pass to the woofer and 2nd order High Pass to the tweeter.
  • Optimum Air Cavity Behind Speaker: 40 to 80 liters (1.4 to 2.8 cu ft)
  • Dimensions: 13.1" H x 10.1" W x 4.3" D, 4.0" D front of wall to back of speaker
  • Maximum Wall Thickness: 1.25"
  • Cutout Size: 11.9" H x 8.9" W, Cutout template included
  • Net Weight (each): 5.5 lbs
  • Included Accessories: Cutout template & paint shield
