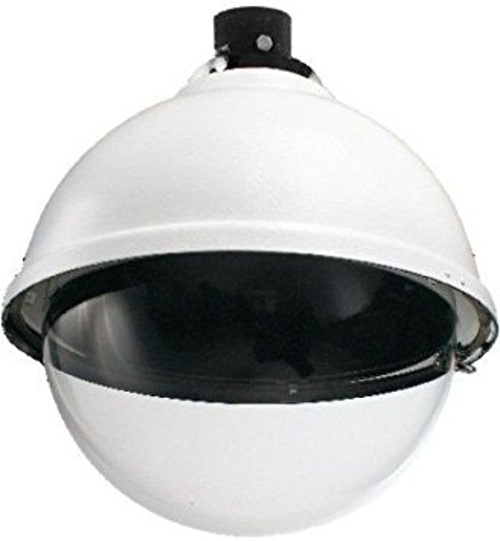

Sony BRCSDP12
12" Outdoor Dome Housing

OUR PART #  BRCSDP12

Our Price: $628.43
List Price: $750.00
You save 16%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

The BRCSDP12 12" dome offers great outdoors protection in a compact size. It accepts the BRC-300 camera. The BRCSDP12 includes a heater and blower for environmental protection. It features a 1/4", UV rated, ABS plastic upper dome and a 1/8" cell-cast acrylic lower dome.

Features:

  • Pendant mount with optional SNCWM20G wall mount
  • Easy camera installation
  • Security fasteners standard equipment
  • Optically clear cast cell acrylic dome
  • 24 Hour fan operation for effective heating and condensation protection
  • 24vac power input
  • Thermostatically control heater
  • Separate power input for H&B and camera power

    Specifications:

    ELECTRICAL SPECIFICATIONS
    BRCSDP12: 24 VAC 75 watts

    MECHANICAL SPECIFICATIONS
    Size (hxwxd): 16.5" x 14.3" x 14.3" (420x364x364mm)
    Weight: 14 lbs. (without camera)
    Construction:
    Upper Housing: .250" (6.4mm) ABS
    Lower Dome: .125" (3.2mm) cell-cast acrylic
    Mounting Brackets: Cast and machined aluminum

    ENVIRONMENTAL SPECIFICATIONS
    Operating Temperature: -15°F to +104°F
    Heater
    Activates at +40°F (26°C),
    Deactivates at +60° F (15°C),
    Power 24vac, 50W
    Blower Continuous operation



  • Sony BRCSDP12
    12" Outdoor Dome Housing

    OUR PART #  BRCSDP12

    Product Information:

    The BRCSDP12 12" dome offers great outdoors protection in a compact size. It accepts the BRC-300 camera. The BRCSDP12 includes a heater and blower for environmental protection. It features a 1/4", UV rated, ABS plastic upper dome and a 1/8" cell-cast acrylic lower dome.

    Features:

  • Pendant mount with optional SNCWM20G wall mount
  • Easy camera installation
  • Security fasteners standard equipment
  • Optically clear cast cell acrylic dome
  • 24 Hour fan operation for effective heating and condensation protection
  • 24vac power input
  • Thermostatically control heater
  • Separate power input for H&B and camera power

    Specifications:

    ELECTRICAL SPECIFICATIONS
    BRCSDP12: 24 VAC 75 watts

    MECHANICAL SPECIFICATIONS
    Size (hxwxd): 16.5" x 14.3" x 14.3" (420x364x364mm)
    Weight: 14 lbs. (without camera)
    Construction:
    Upper Housing: .250" (6.4mm) ABS
    Lower Dome: .125" (3.2mm) cell-cast acrylic
    Mounting Brackets: Cast and machined aluminum

    ENVIRONMENTAL SPECIFICATIONS
    Operating Temperature: -15°F to +104°F
    Heater
    Activates at +40°F (26°C),
    Deactivates at +60° F (15°C),
    Power 24vac, 50W
    Blower Continuous operation
